As one of the in-depth partners of Apple (Apple lnc.), mophie's products can be sold on its official website. It is very trustworthy in terms of quality, performance and after-sales guarantee. At the same time, mophie also brings powerful charging accessories to the new iPhone, Apple Watch and AirPods headphones, with the same charging experience as the official one.
Previously, Charging Head Network has done a detailed evaluation of the three-in-one scroll design charger made of family-style fabrics. The new three-in-one MagSafe charger we got this time still adopts the scroll design. It folds up and is only about the size of a legal pad. With MFi, MFM, and MFW certifications at the same time, the charging performance may be even better; let’s take a look at the charging head website.
As usual, look at the packaging first.

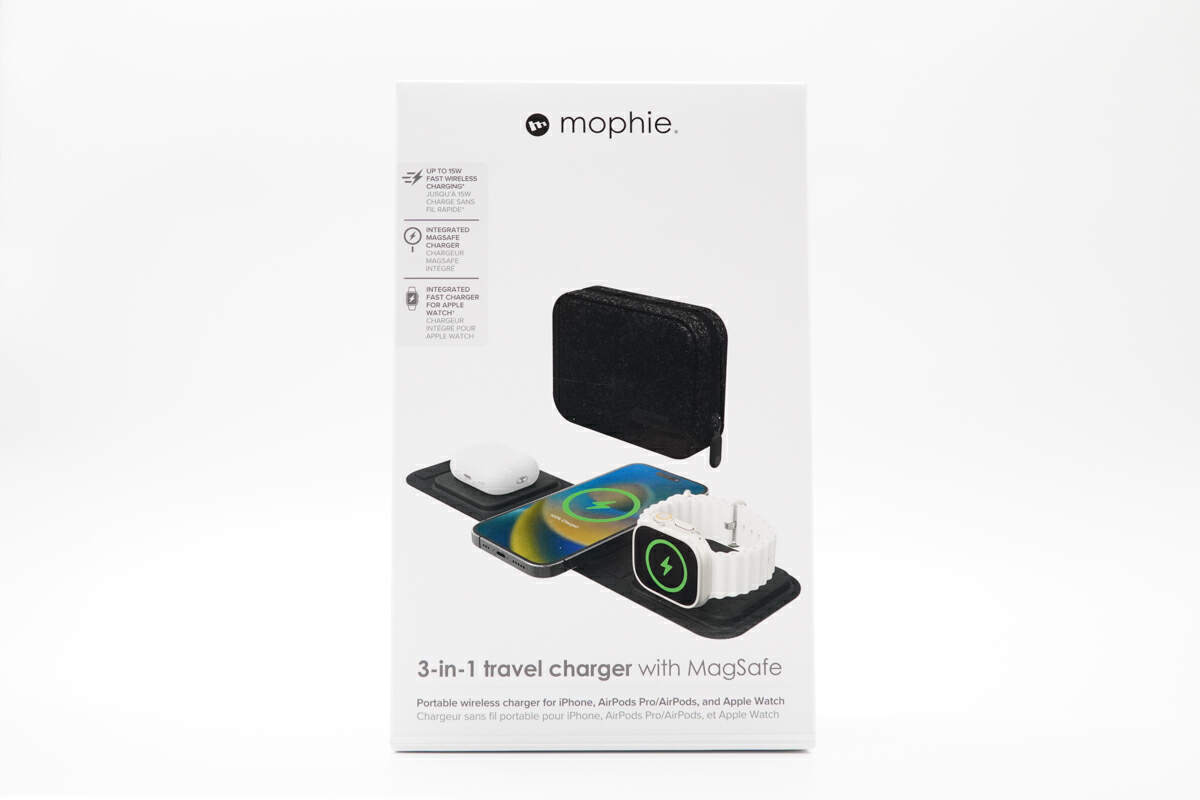

The packaging box is still mophie's white simple design style. The unfolded charging status of the wireless charger is printed on the front, and it has a storage bag; the name "3-in-1 travle charger with Magsafe" is printed below (hereinafter referred to as mophie three-in-one Wireless charger); on the left are the key features of the charger.

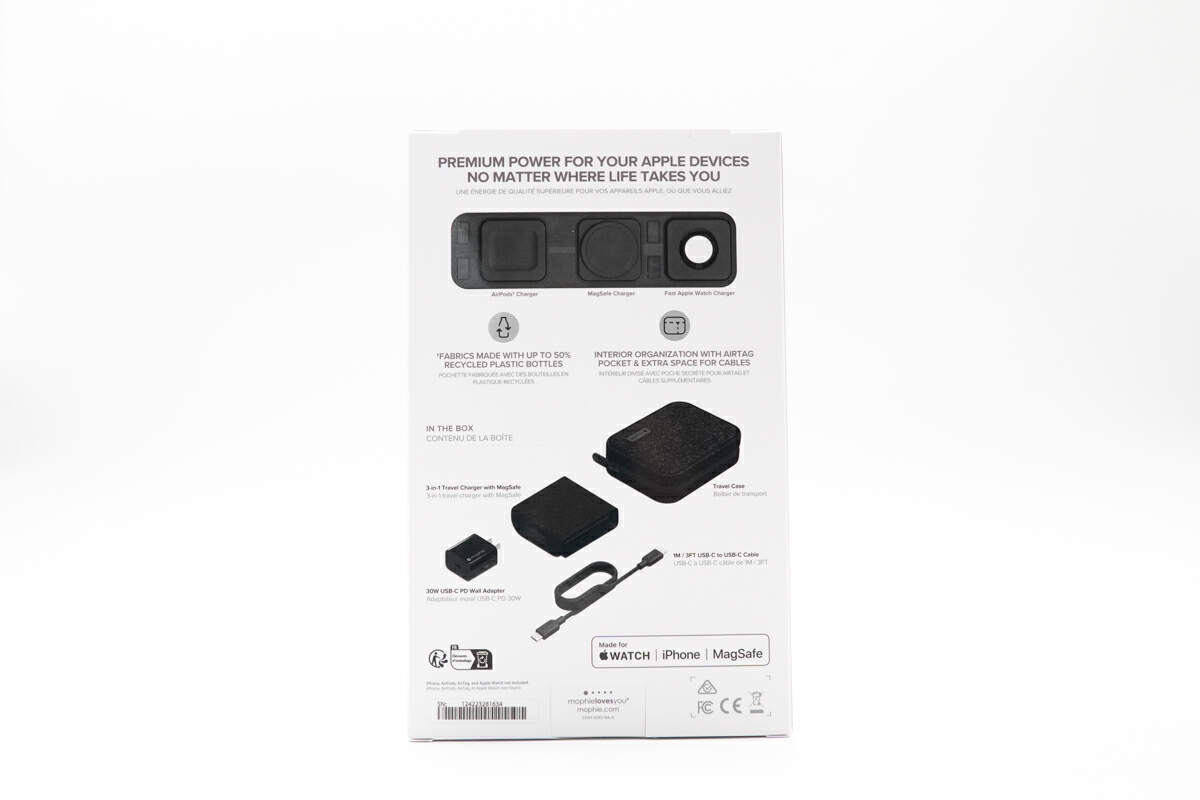

On the top of the back of the box, there is a usage scenario diagram of the mophie 3-in-1 wireless charger and a detailed illustration of each accessory. The bottom part is naturally an explanation of the key points, but there is no certification mark such as "MFW, MFi, MFM" printed on the box. .

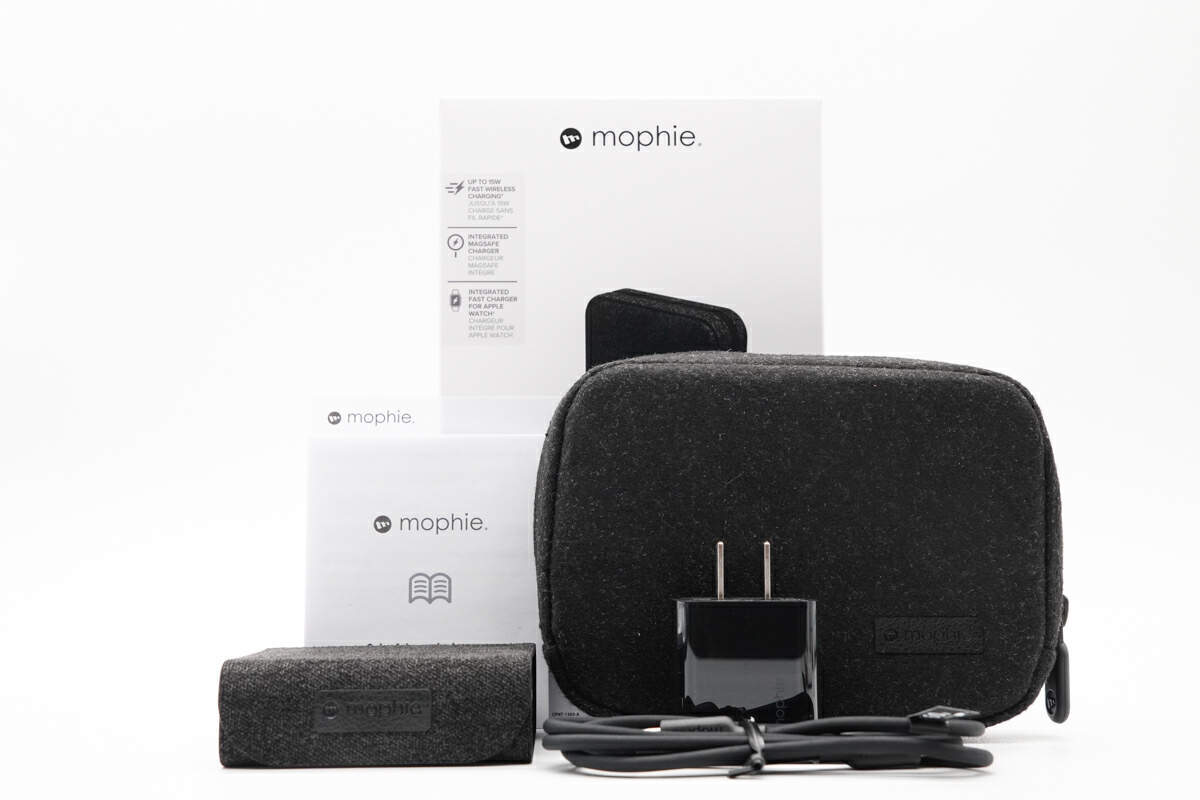

Opening the package, in addition to the mophie three-in-one wireless charger and fabric storage bag, there are also product manuals, charging sets, and magnetic ring sets.

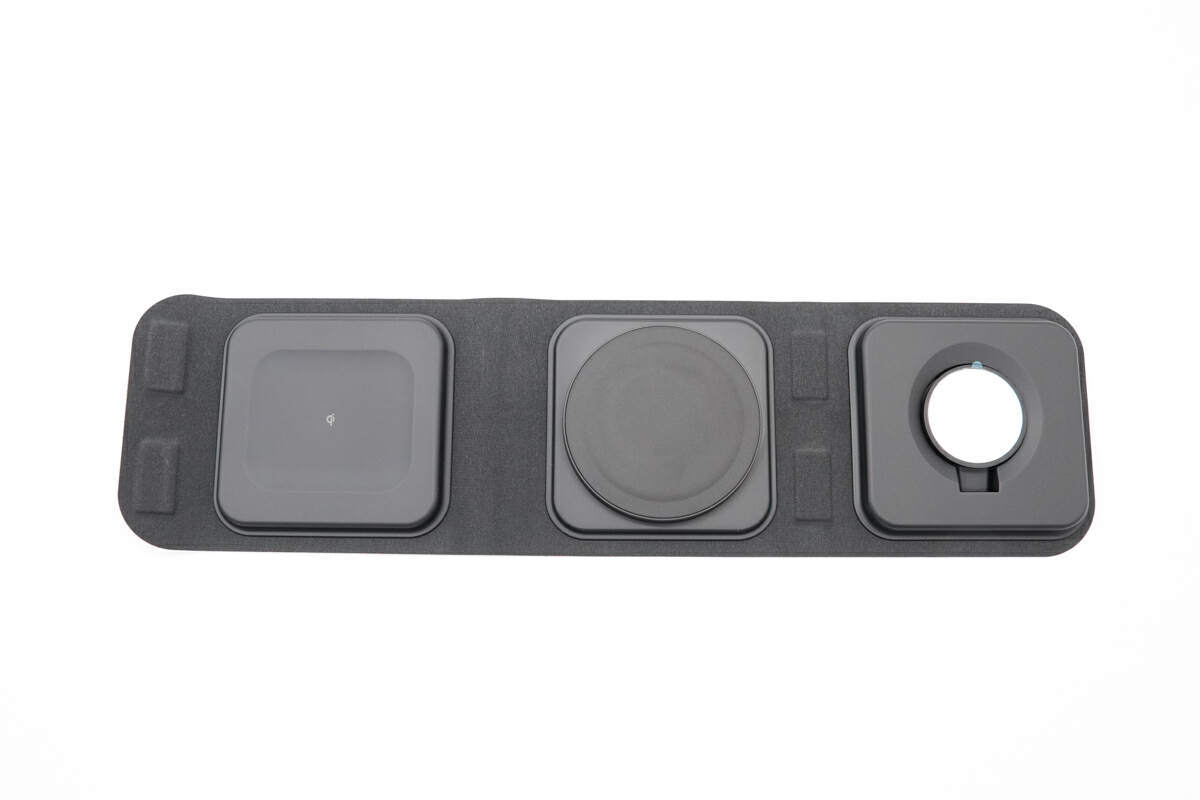

After the mophie three-in-one wireless charger is unfolded, from left to right are the earphone wireless charging area, the mobile phone magnetic charging area and the Apple Watch magnetic charging area; and the "qi" logo is printed in the middle of the earphone charging area.

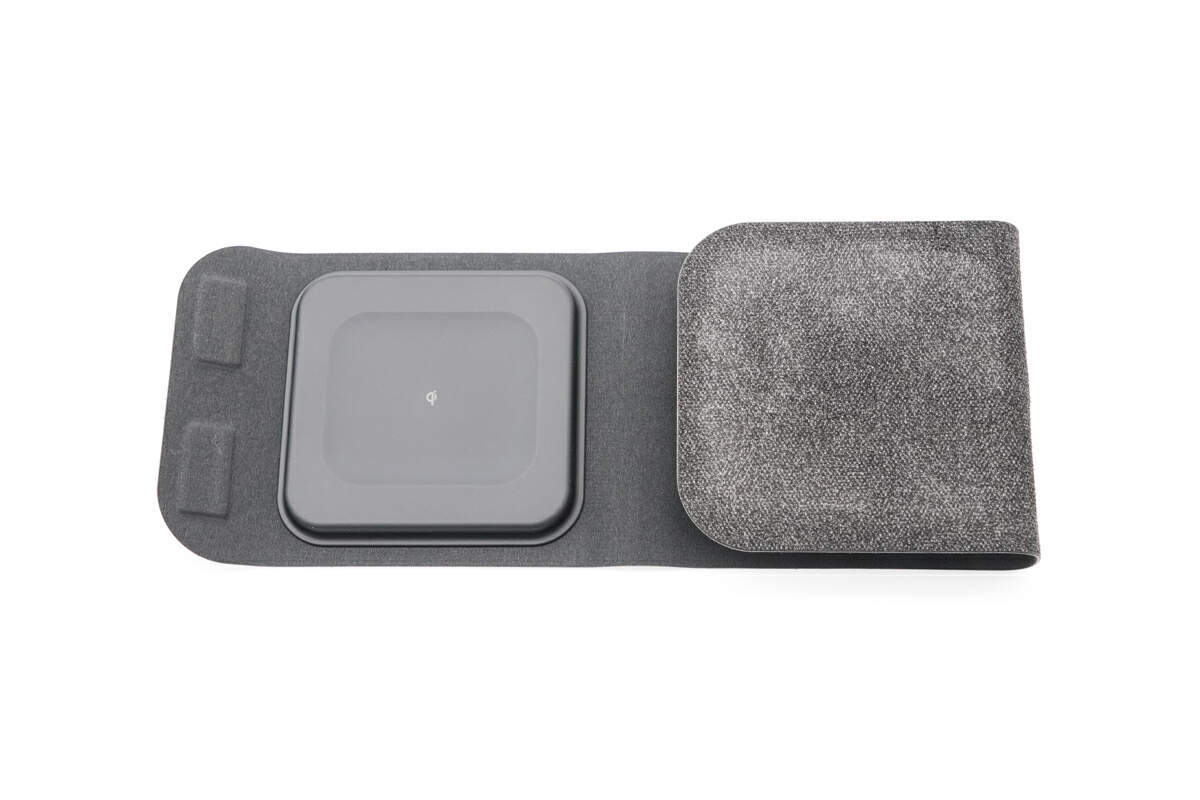

This time, the mophie 3-in-1 wireless charger still adopts the scroll design, and the outer layer is made of high-quality fabric, with a woolen feel that is smooth and comfortable; at the same time, the magnetic module feels similar to MagSafe's original magnetic module, and is delicate and skin-friendly.

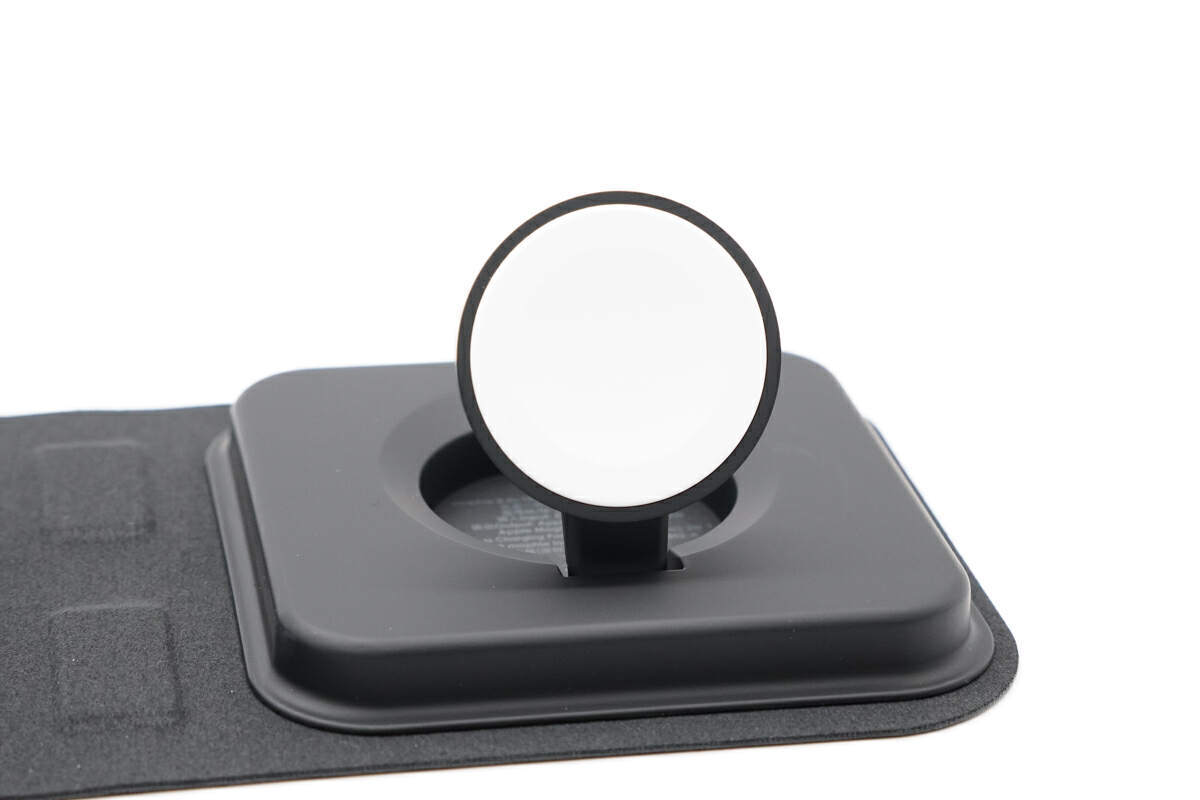

The charging stand inside the magnetic charging area of the watch supports nearly 90° vertical angle adjustment. The Apple Watch can be placed flat or upright, and users can adjust and fix it according to their own habits. At the same time, it also supports the Apple Watch bedside clock mode.

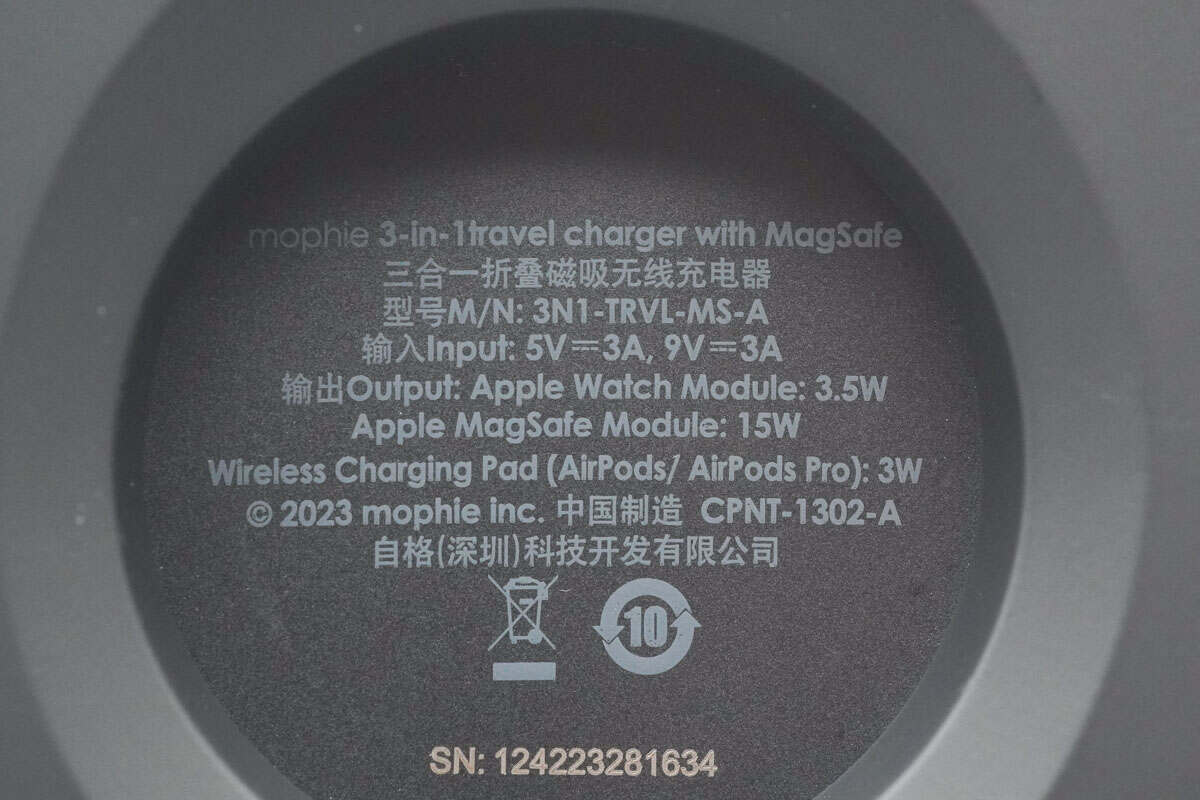

After the Apple Watch module is erected, the relevant specification parameter inscriptions are silk-printed on the housing in the slot area.
Model: 3N1-TRVL-MS-A;
Input: 5V3A, 9V3A;
Output: Apple Watch: 3.5W;
Apple MagSafe: 15W; AirPods/AirPods Pro output: 3W;
Manufacturer: Zige (Shenzhen) Technology Development Co., Ltd.

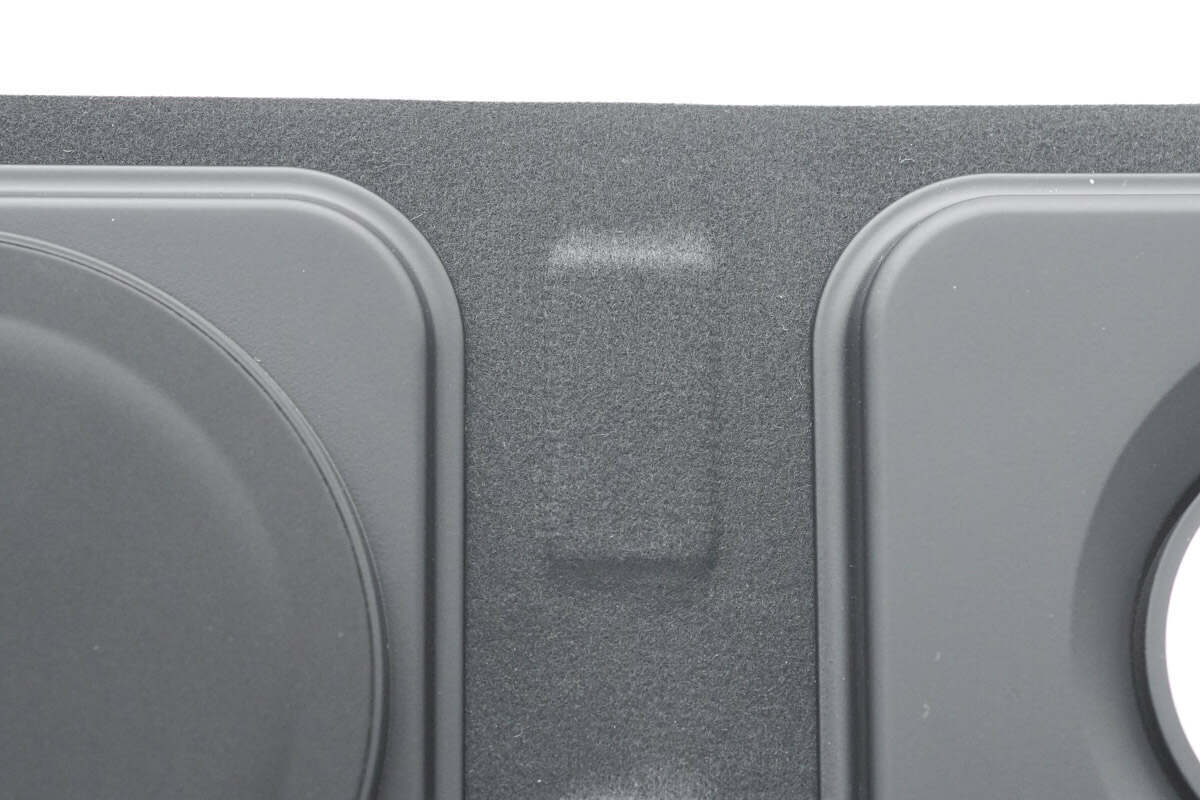

In addition, the charger has a sandwich-designed magnetic block for stable adsorption after folding.

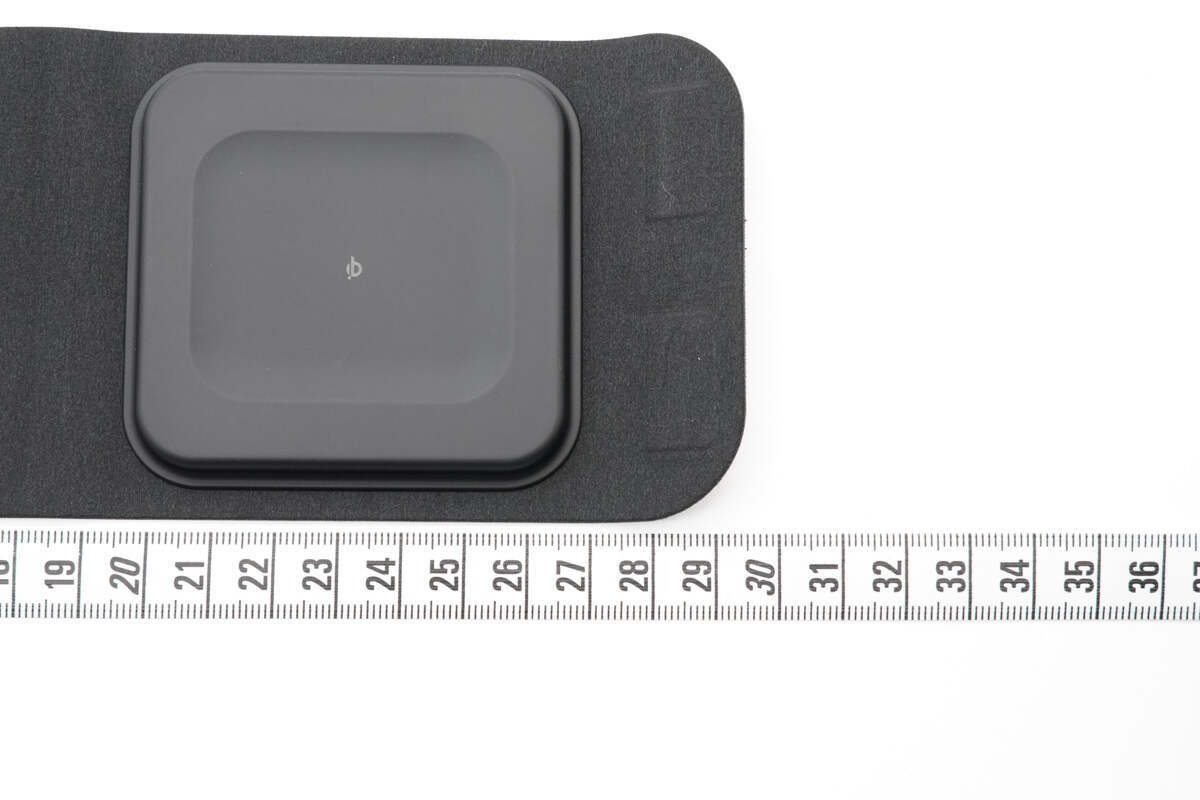

When unfolded, the length of the mophie 3-in-1 wireless charger is approximately 29.5cm.

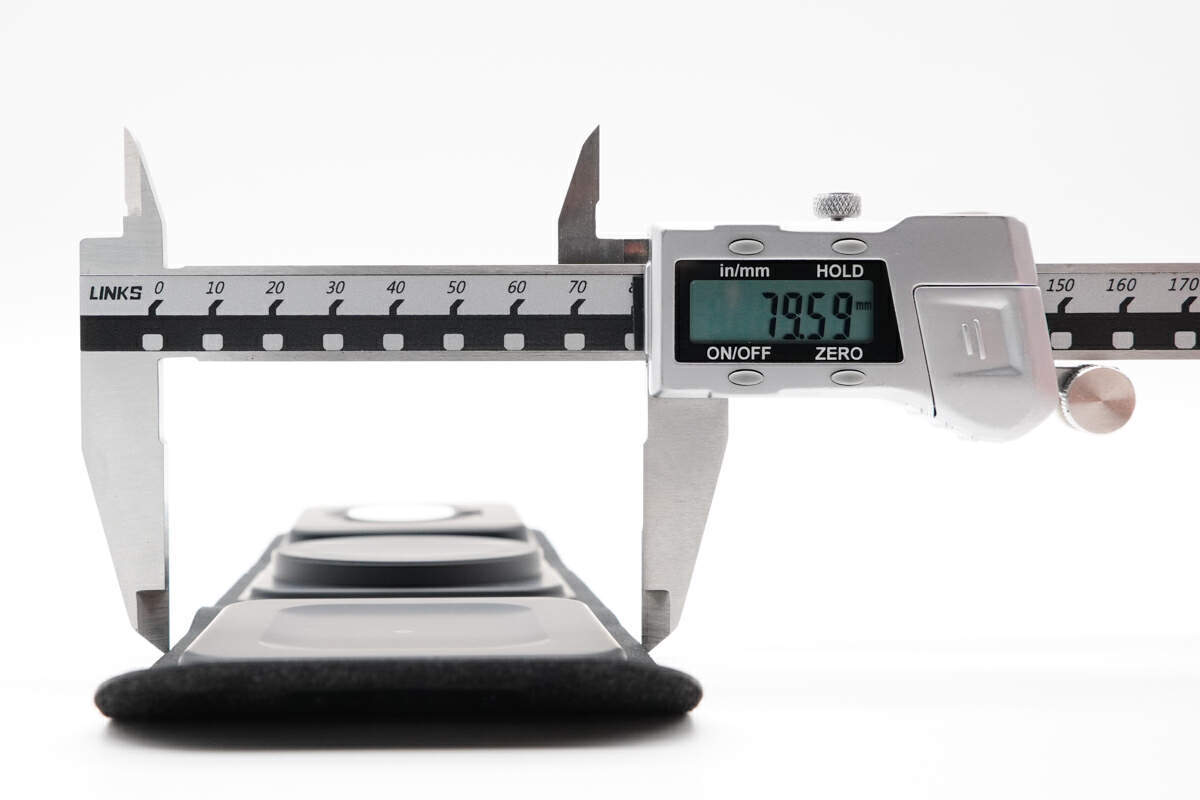

The width of mophie 3-in-1 wireless charger is approximately 79.59mm.

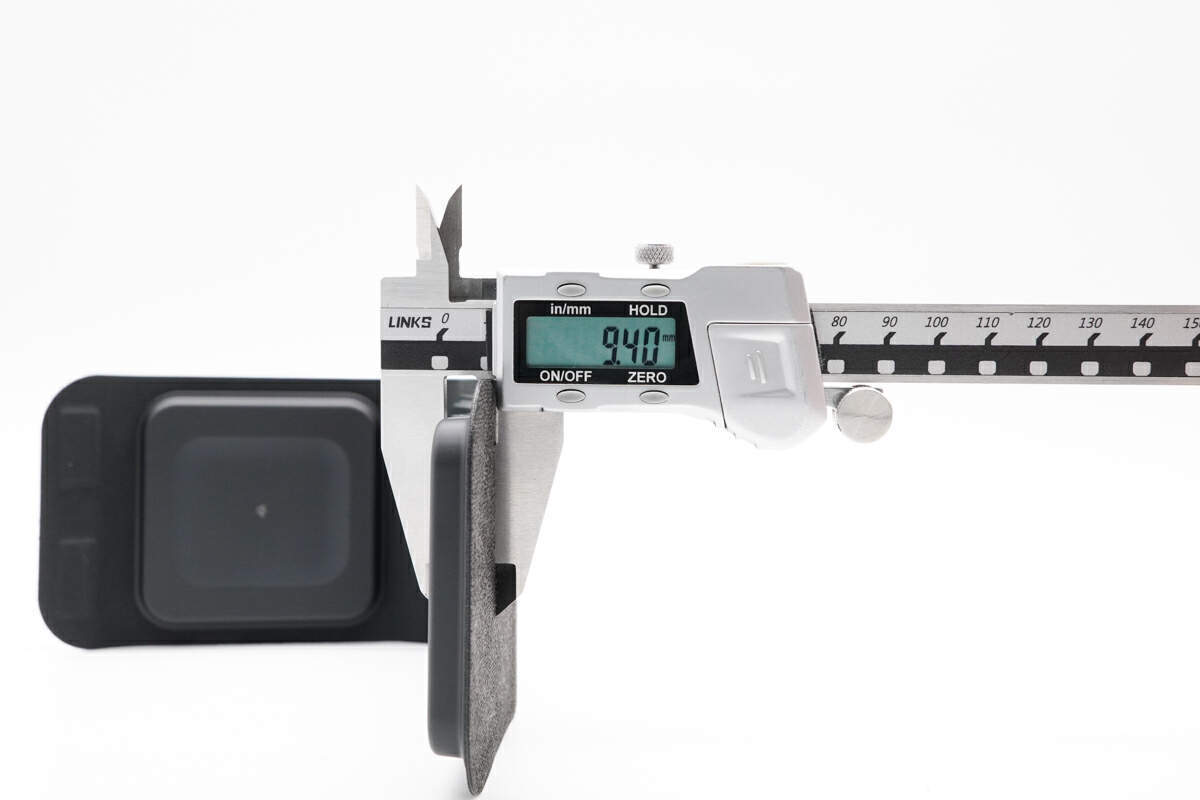

The module thickness of the mophie three-in-one wireless charger is approximately 9.4mm.

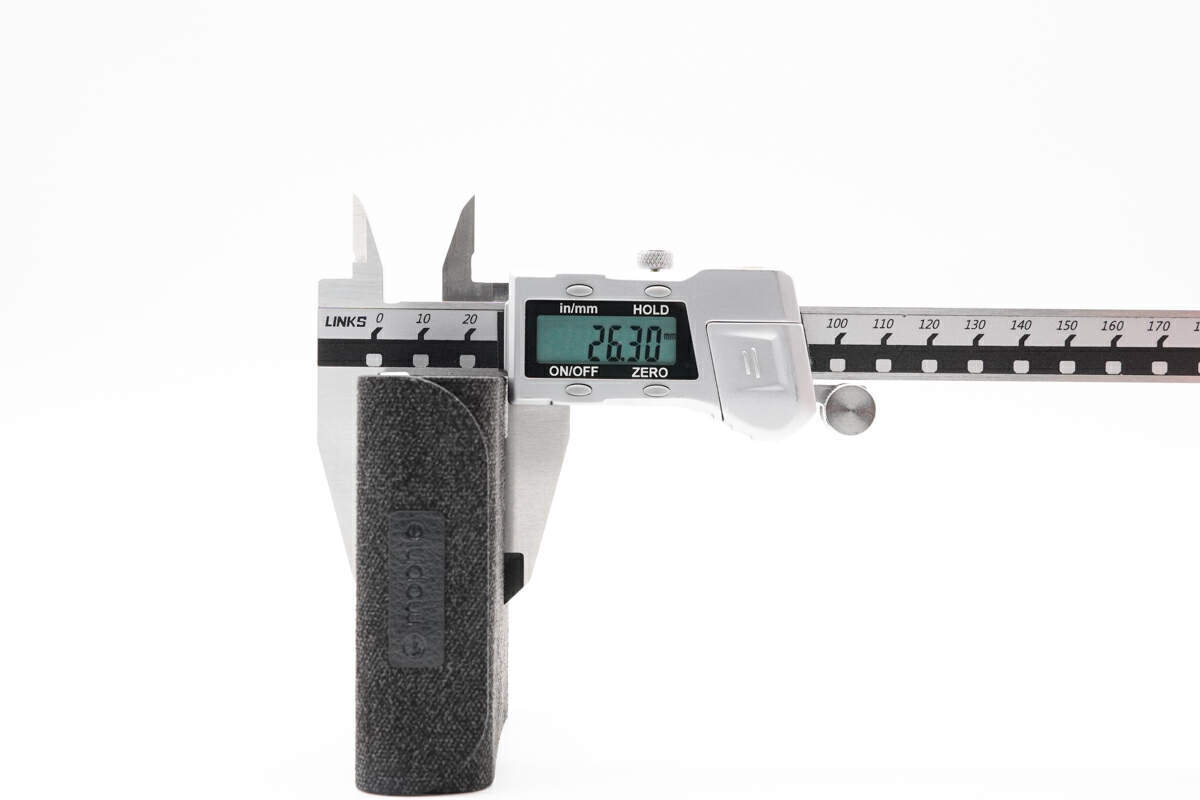

After the mophie 3-in-1 wireless charger is closed, the thickness is approximately 26.3mm.

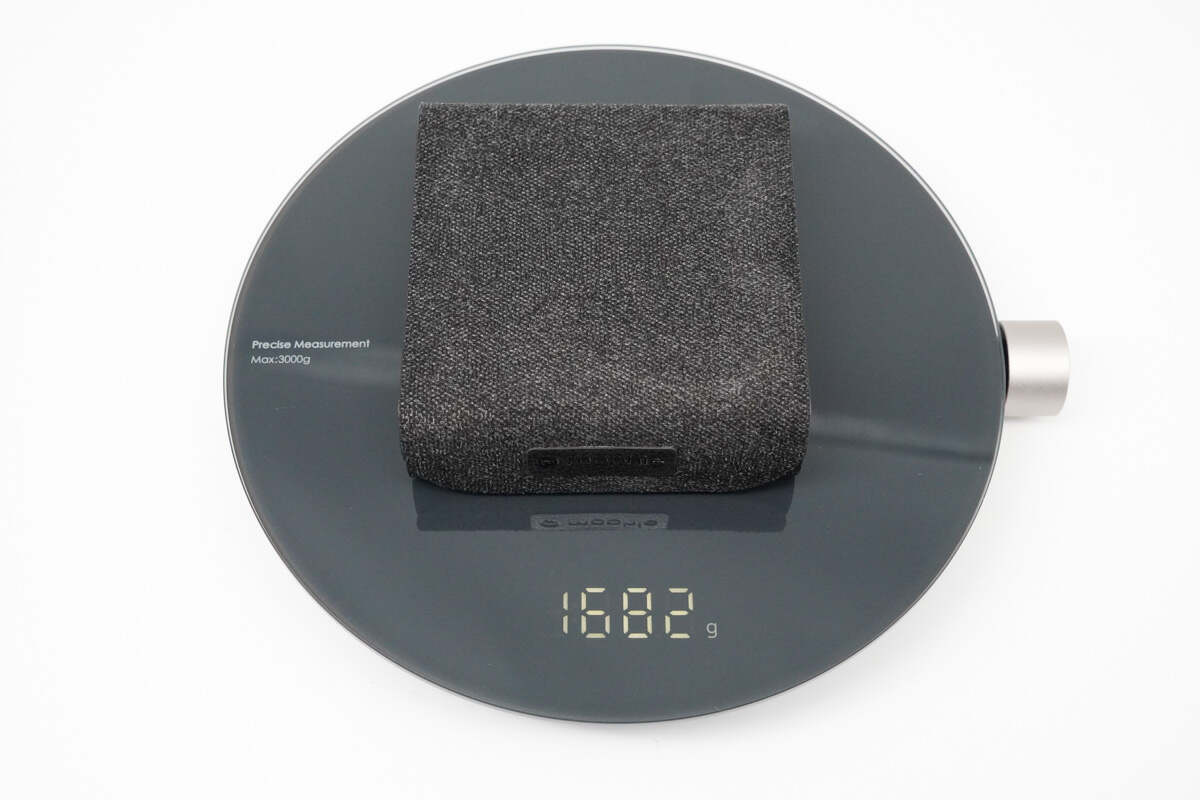

The mophie three-in-one wireless charger alone weighs approximately 168.2g.
In order to facilitate users to use it right away, the storage bag comes with a charging set, which is a 30W PD charger and C to C charging cable.

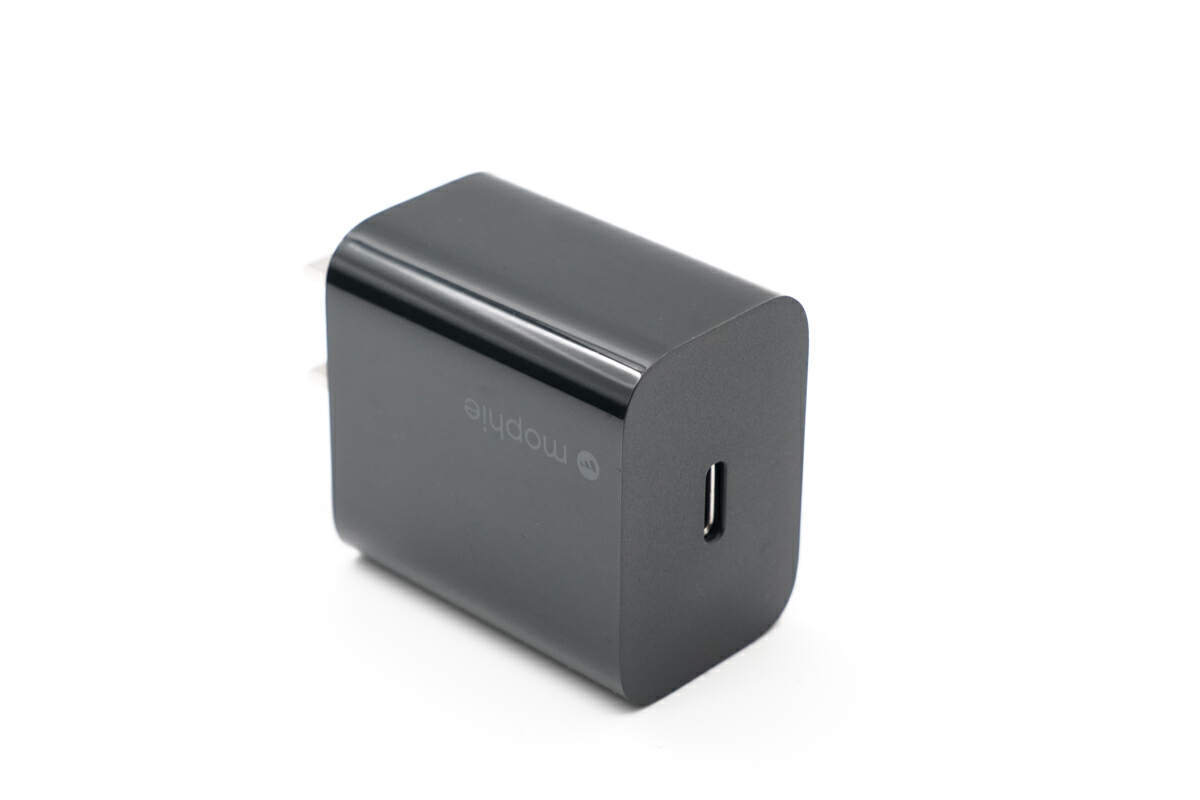

The mophie 30W charger uses a glossy black PC material casing, with the "mophie" brand logo silk-screen printed on the front only. Extreme simplicity.

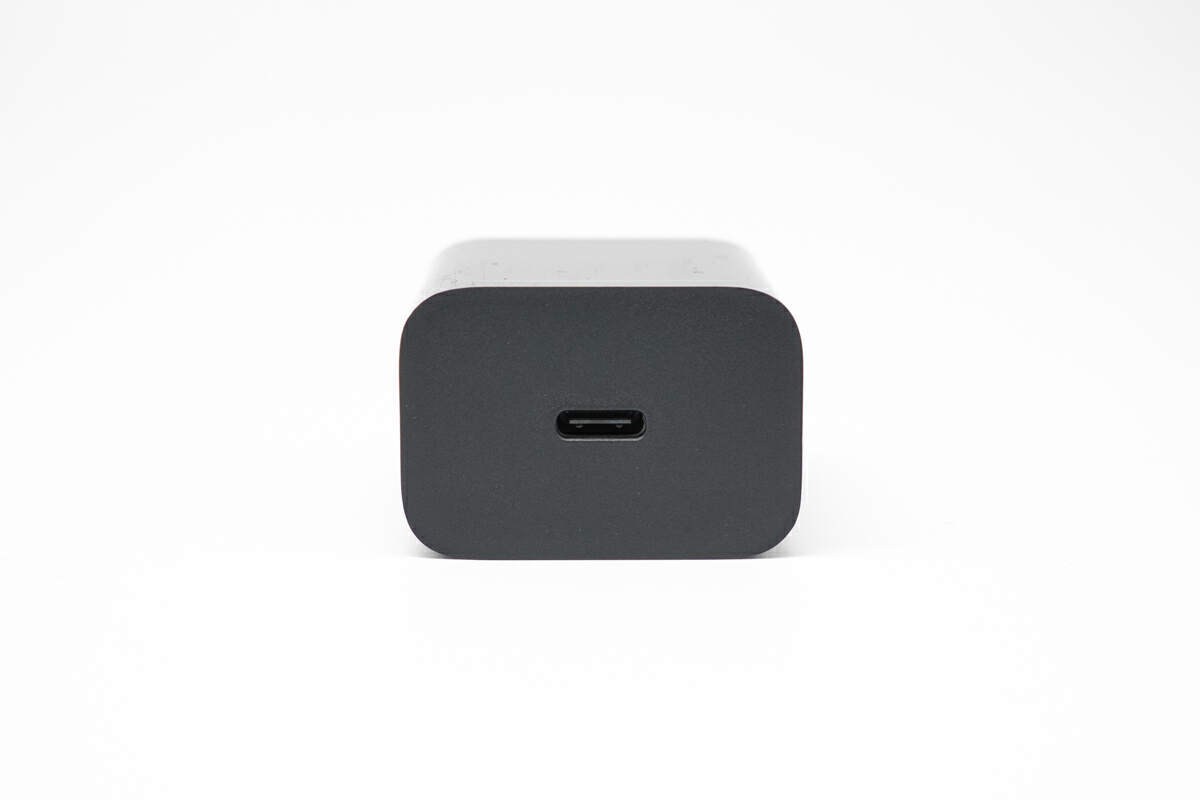

The output panel is only equipped with a single USB Type-C port, and the female port rubber core is pure black.

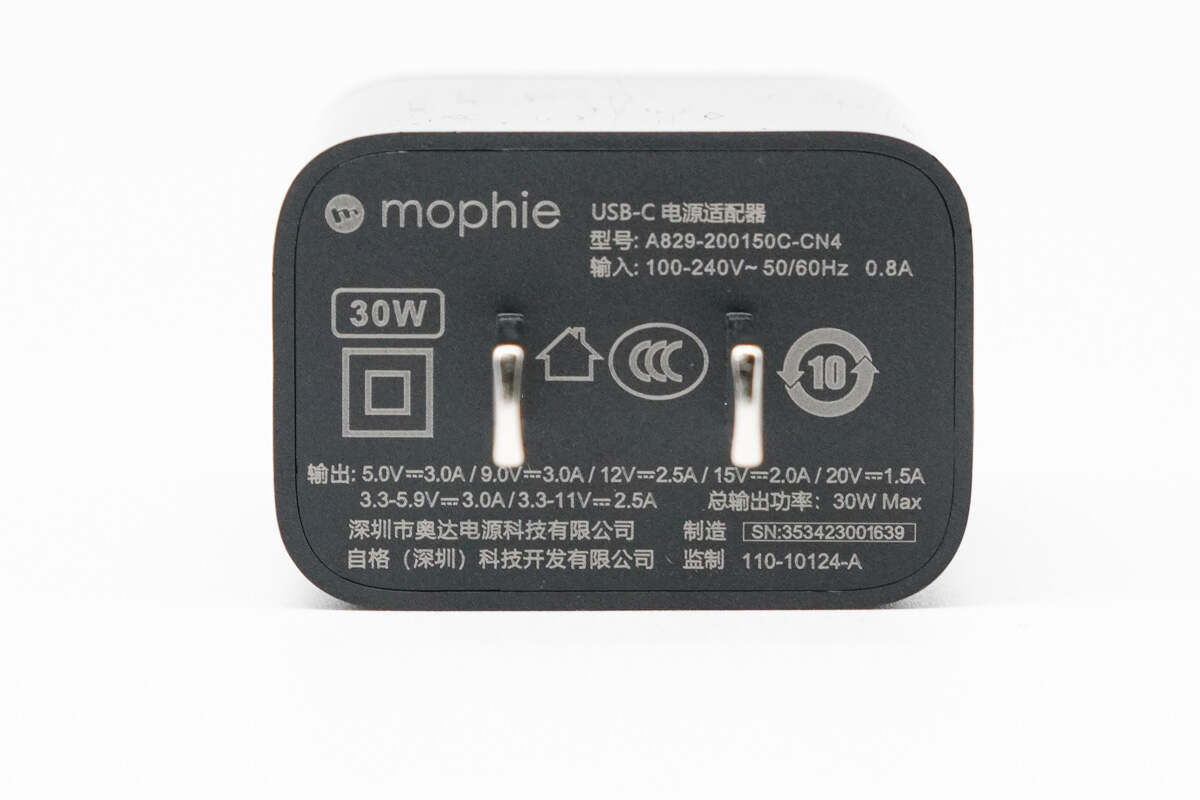

The charger is designed with fixed pins, and detailed specifications are silk-printed on the panel.
Model: A829-200150C-CN4;
Input: 100-240V~50/60Hz 0.8A;
Output: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, 3.3-5.9V/3A, 3.3-11V/2.5A;
Total output power: 30W Max;
Manufacturer: Shenzhen Aoda Power Technology Co., Ltd., and printed with CCC certification logo, etc.

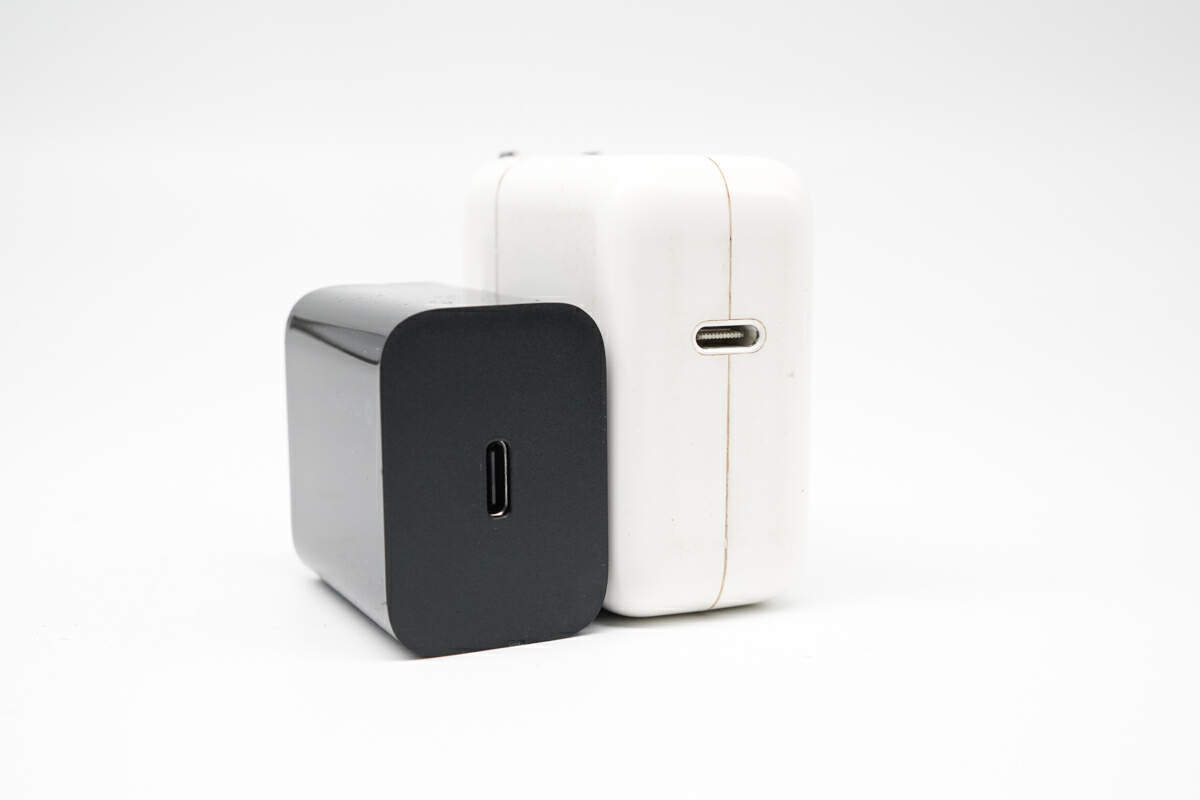

Compared with the Apple 30W charger, the mophie 30W charger is smaller and has obvious advantages.

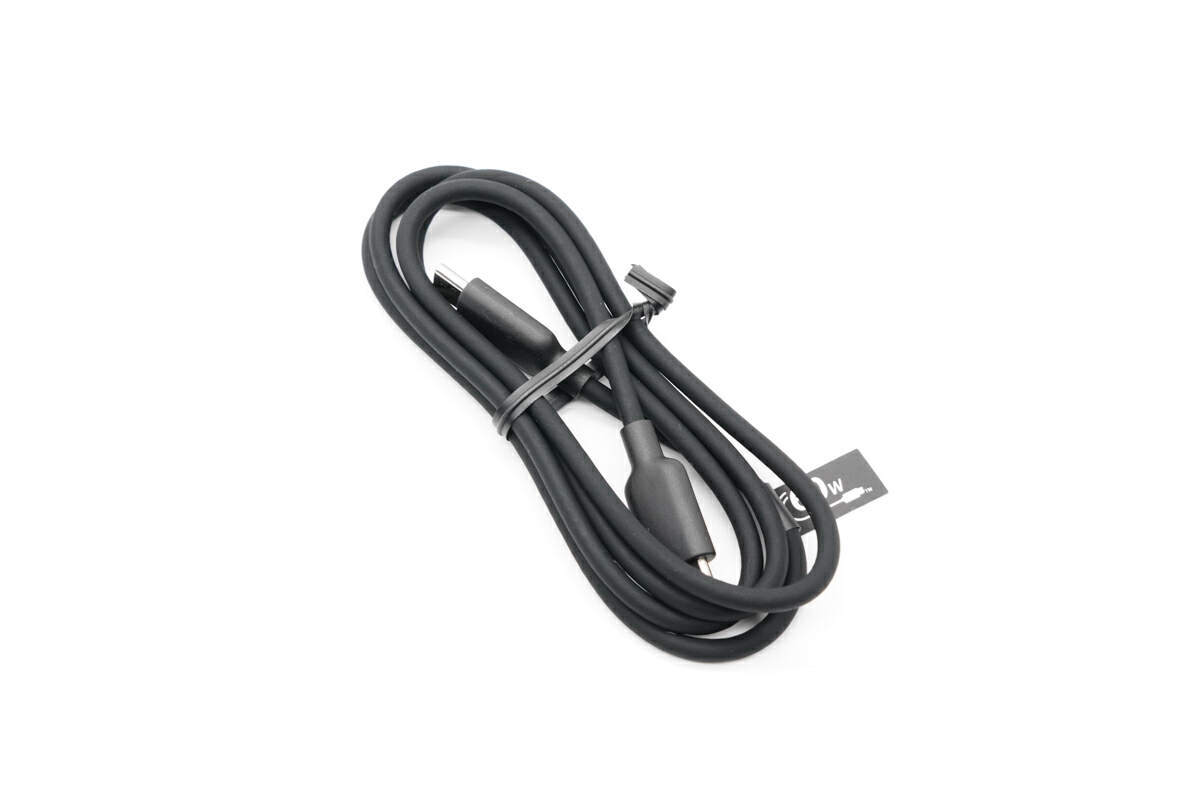

The C to C charging cable end shell and cable body in the set adopt an injection molding one-piece process and are bundled and fixed with steel wire coils.

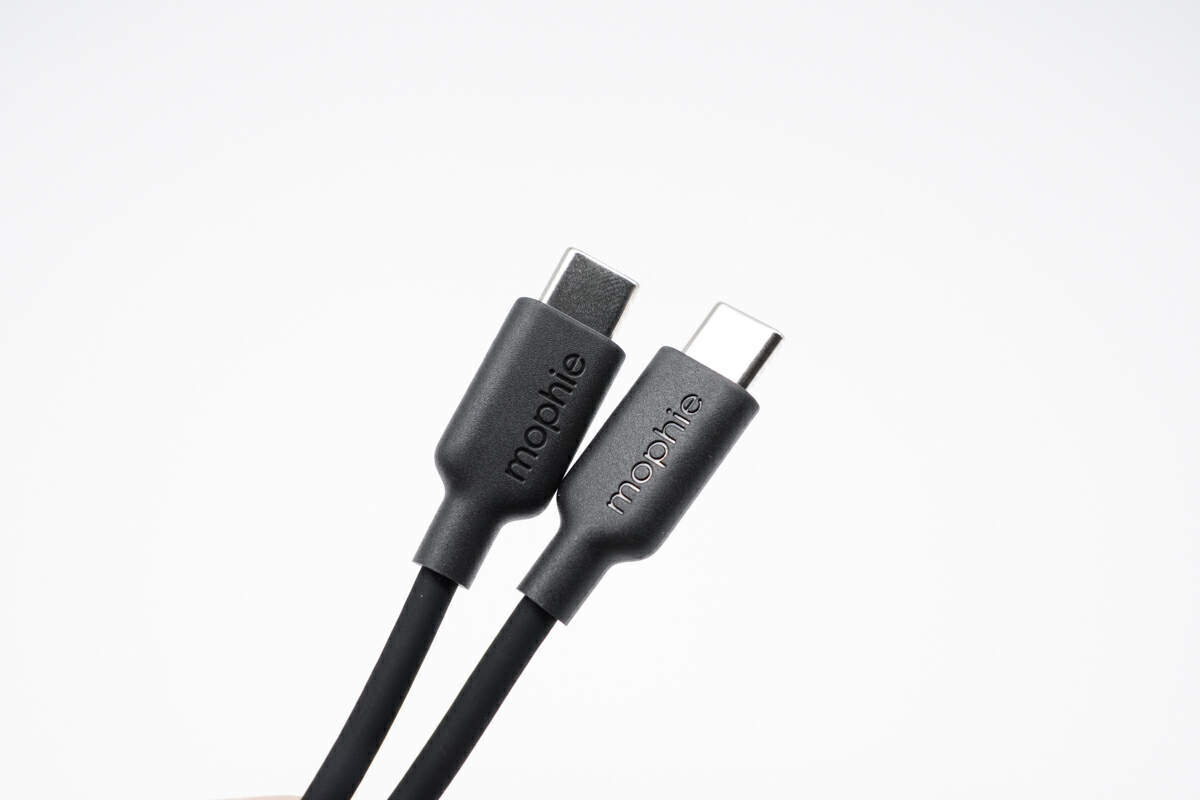

The "mophie" brand is debossed on the sub-end housing.

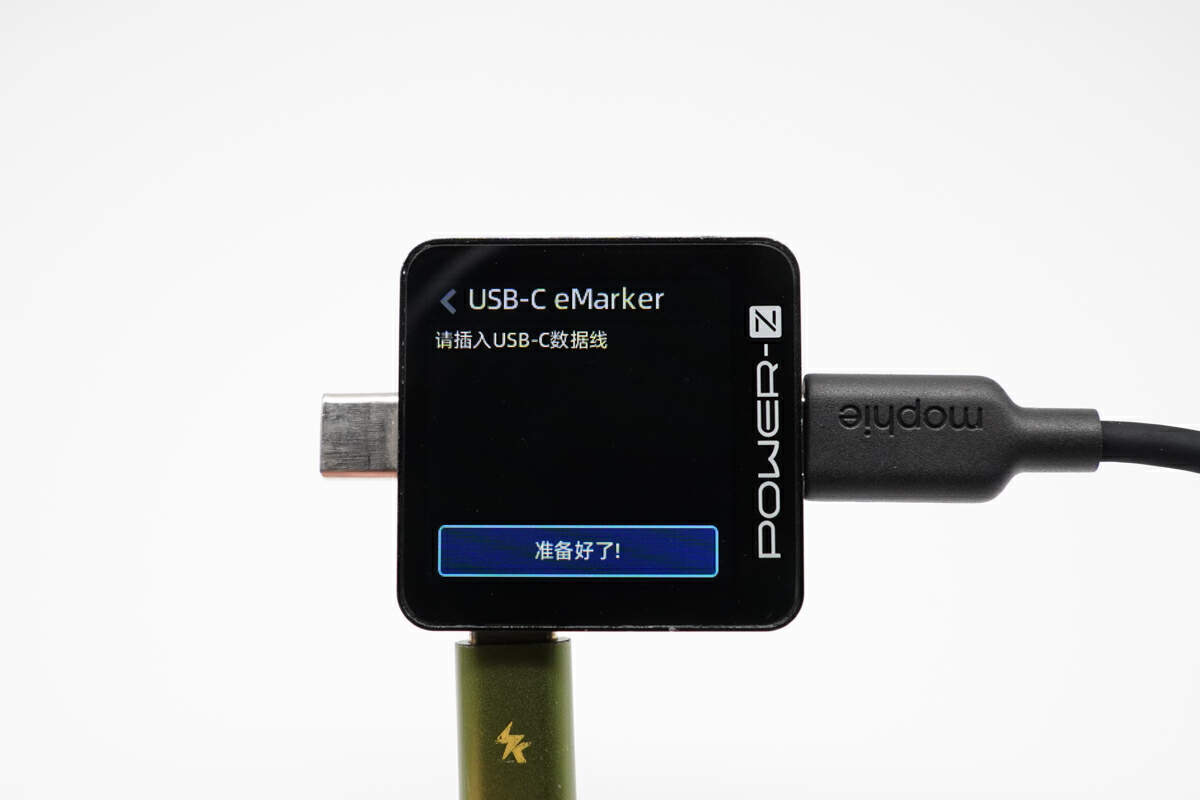

The wire information is read through the POWER-Z KM003C tester. The actual measurement does not display any words, or it does not have an E-Marker chip.

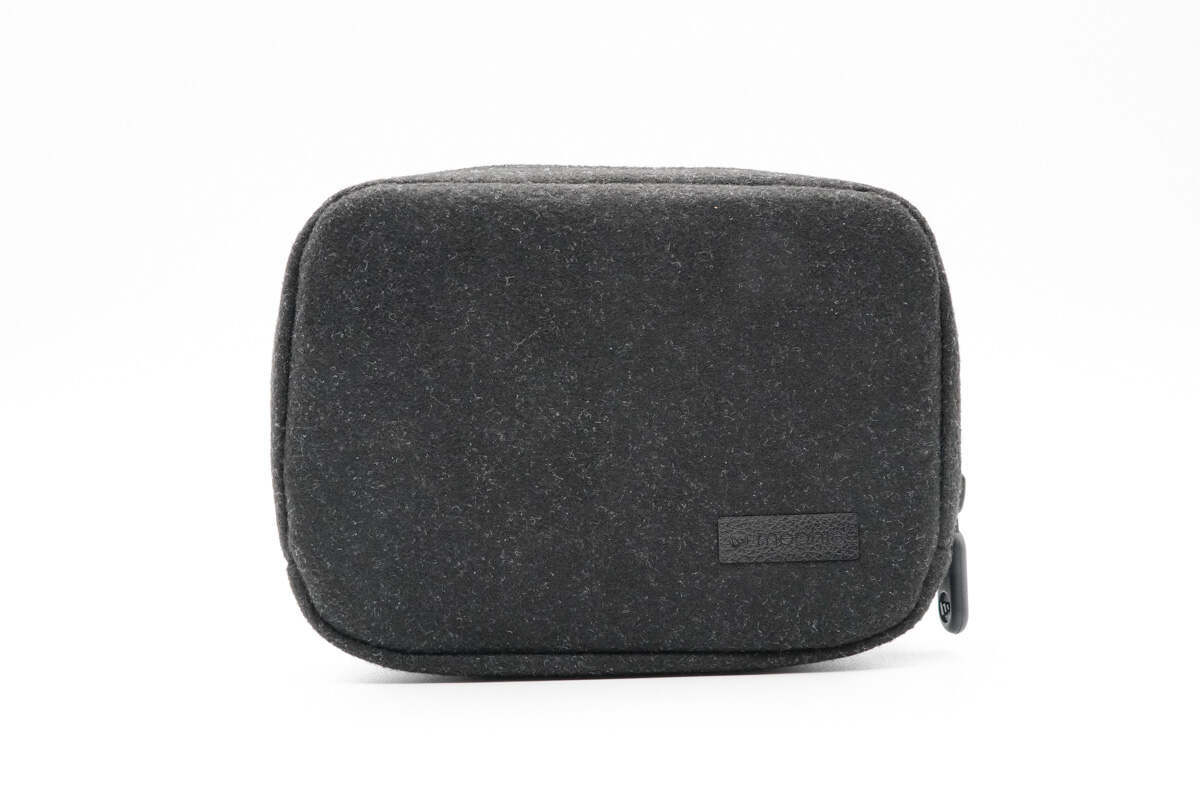

The included travel storage bag is still made of leather + woolen material and has good hydrophobic properties.

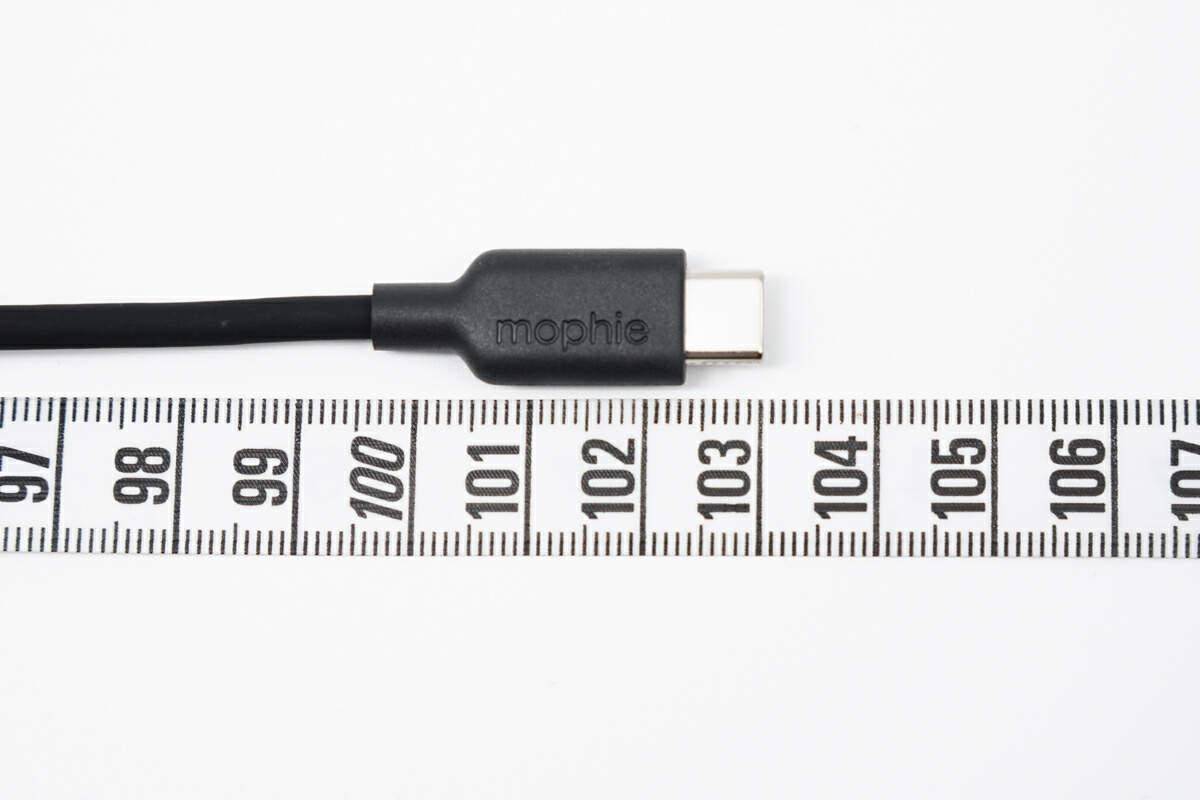

The length of the charging cable is approximately 103cm, which can meet the length requirements for daily use.

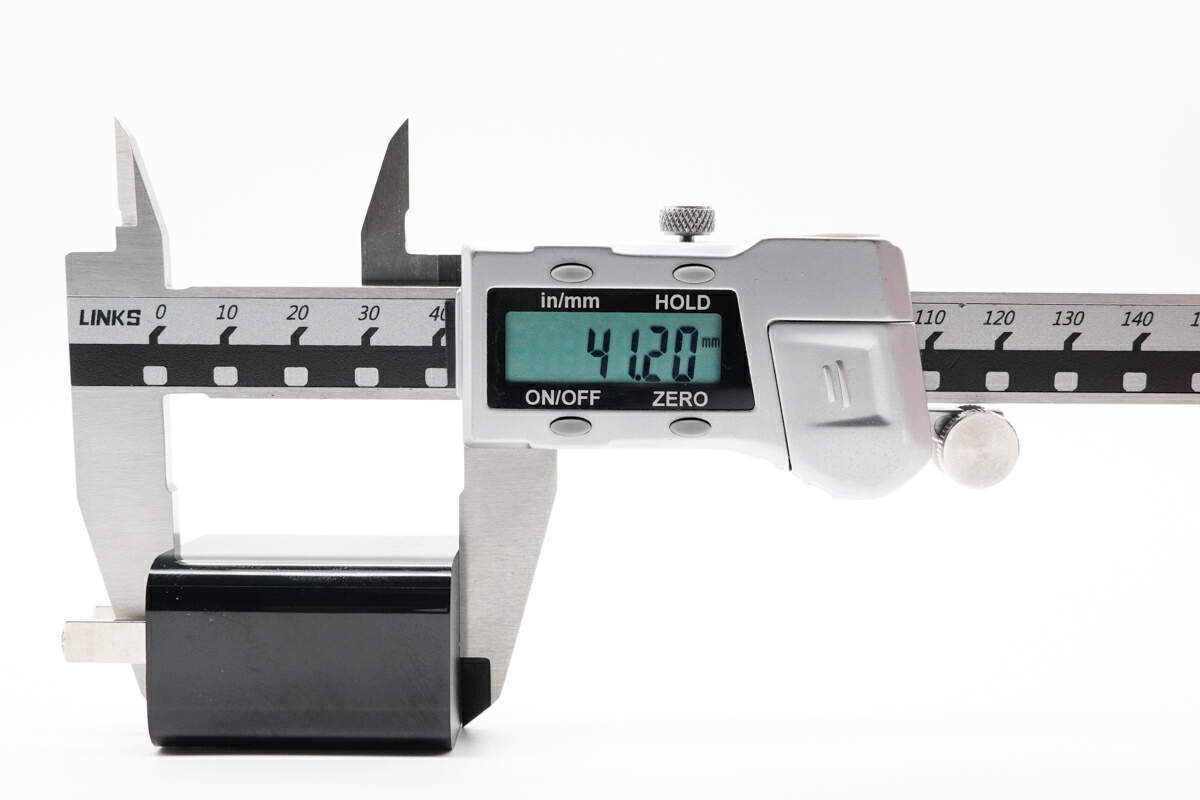

The length of mophie 30W charger is approximately 41.2mm.

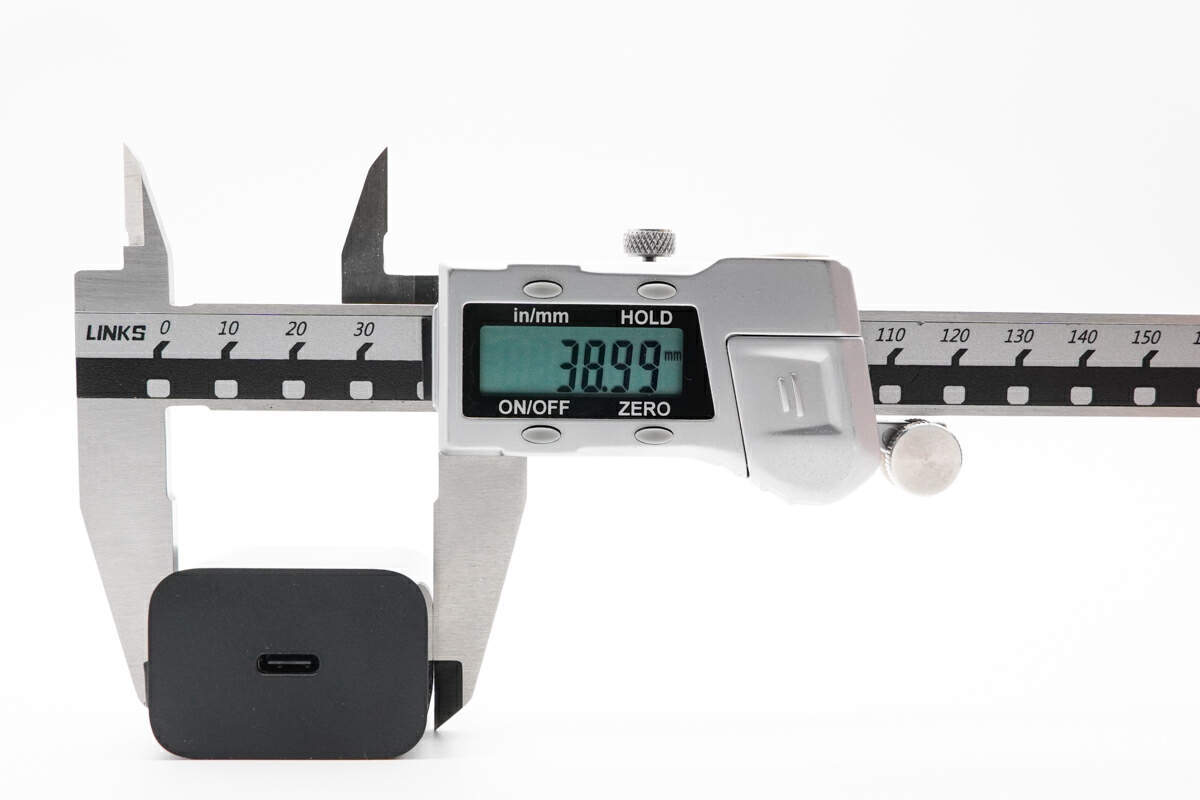

The width of mophie 30W charger is approximately 38.99mm.

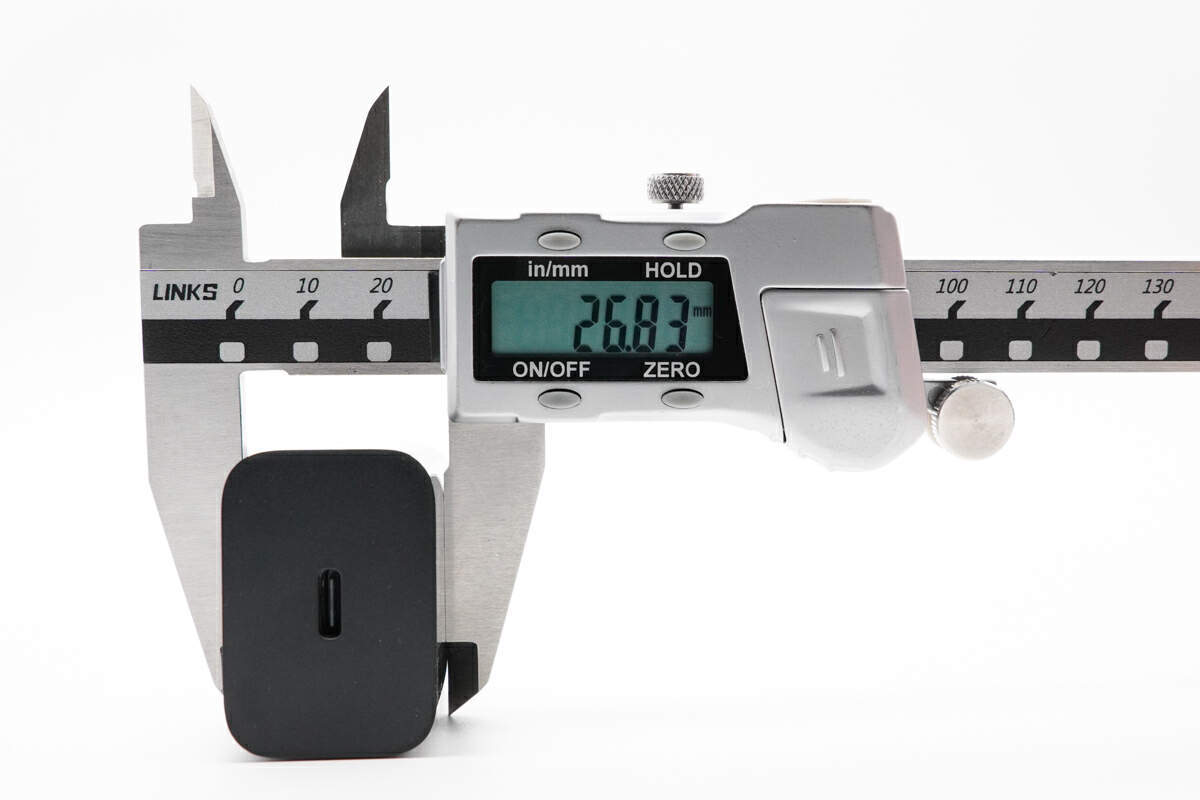

The thickness of the mophie 30W charger is about 26.83mm, and the volume of the charger is 43.1cm³. Calculated based on the charger power of 30W, the power density of the charger is about 0.7W/cm³.

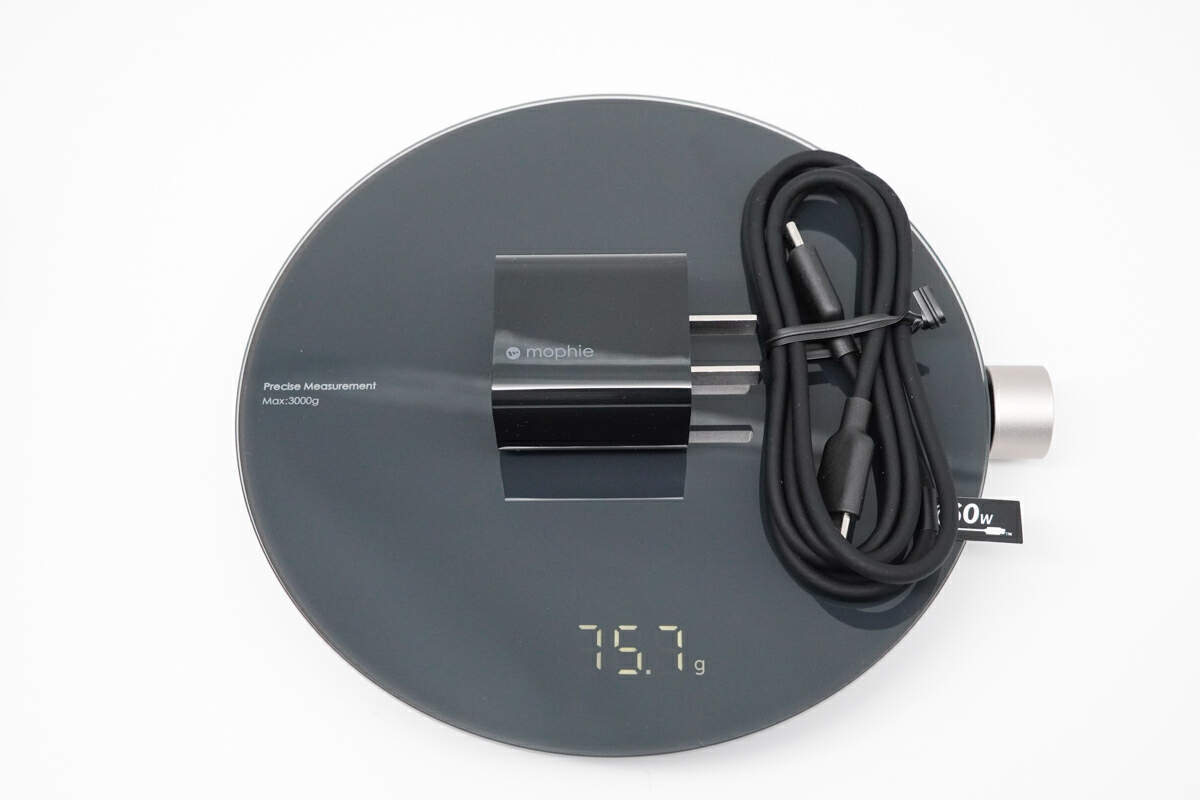

The charger set weighs approximately 75.7g.
In addition to the fast charging protocol marked on the packaging instructions, pursuing and exploring a complete protocol can facilitate users to select devices based on specific protocols to achieve a better fast charging experience.

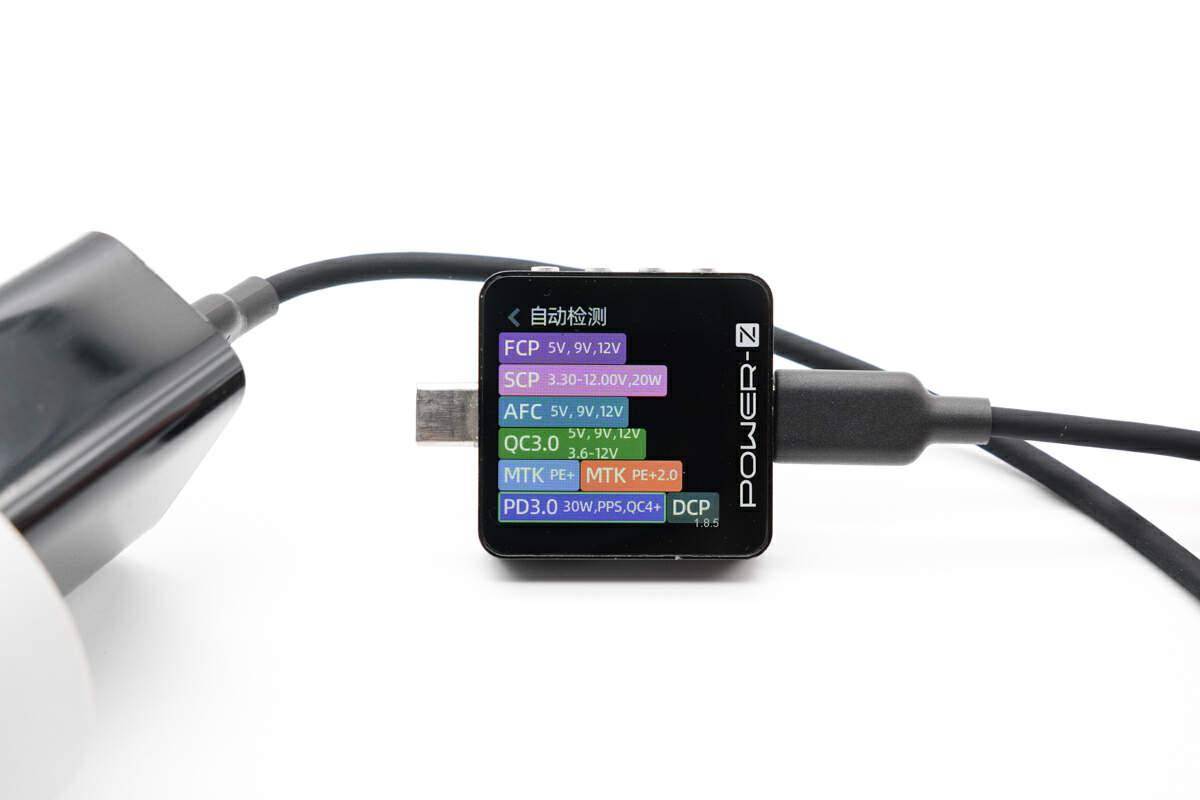

Use the POWER-Z KM003C tester to read the fast charging protocol of the Type-C output port. The actual test supports charging protocols such as FCP, SCP, AFC, QC3.0, MTK, PD3.0, PPS, QC4+ and DCP.

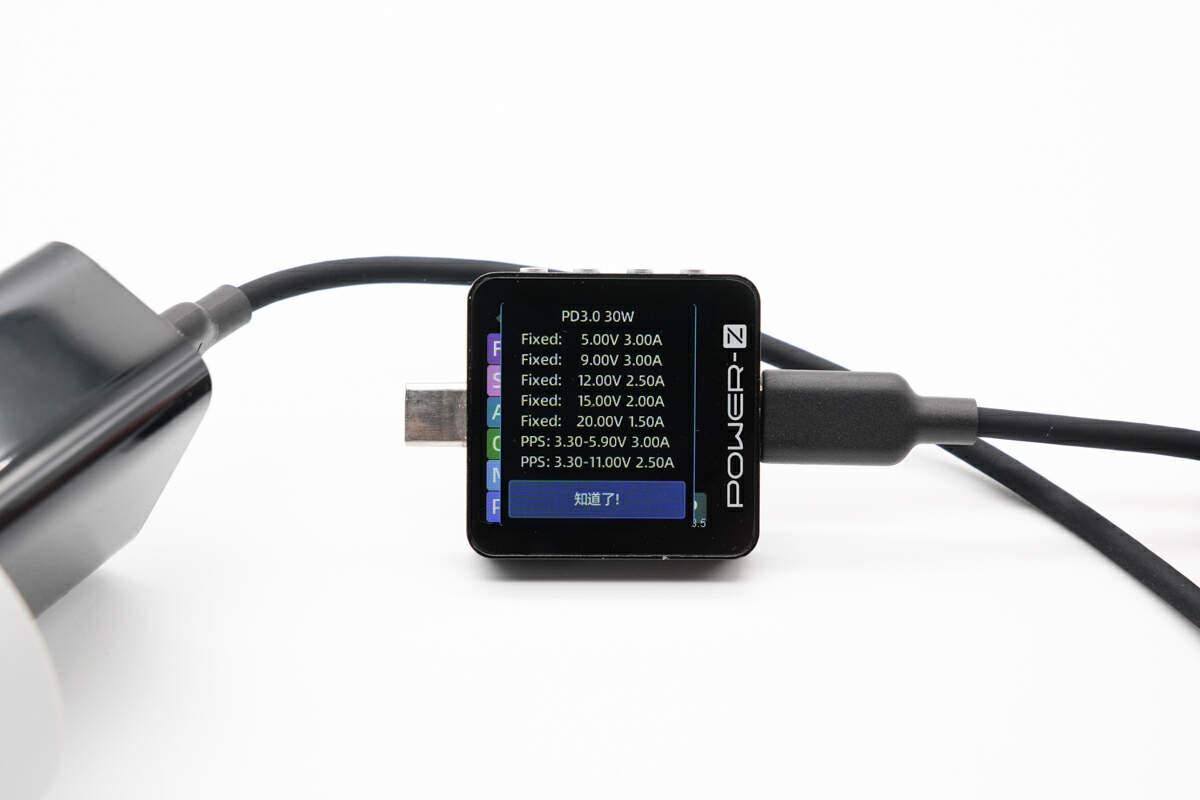

In terms of PDO messages, the actual measurement has five sets of fixed voltage levels: 5V/3A, 9V/3A, 12V/2.5A, 15V/2A, 20V/1.5A, and 3.3-5.9V/3A, 3.3-11V/2.5A. Set the PPS voltage range, which is consistent with the parameter inscription.
In the charging test process, you can clearly know the charging status of the charger for each device. Charging Head Network will use a variety of Apple devices and devices that support wireless charging with chargers for testing, presenting real test data to users.

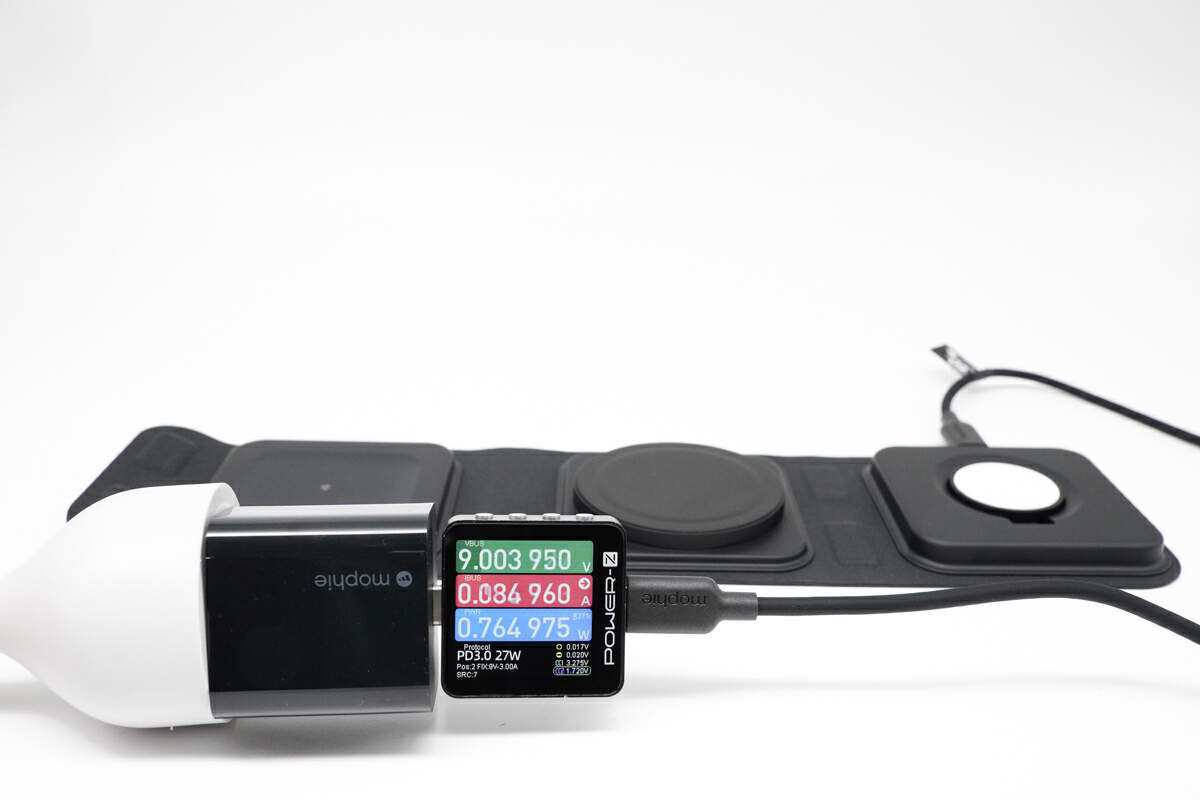

Use the original charger to connect to the mophie three-in-one wireless charger. The measured output power of the charger is 9V 0.08A 0.76W, which means the standby power consumption is negligible.
The iPhone 15 is charged through the magnetic charging area of the mophie three-in-one wireless charger. The measured output power of the charger is 8.91V 2.33A 20.72W. Excluding losses, it approximately meets the description of iPhone 15W wireless charging.

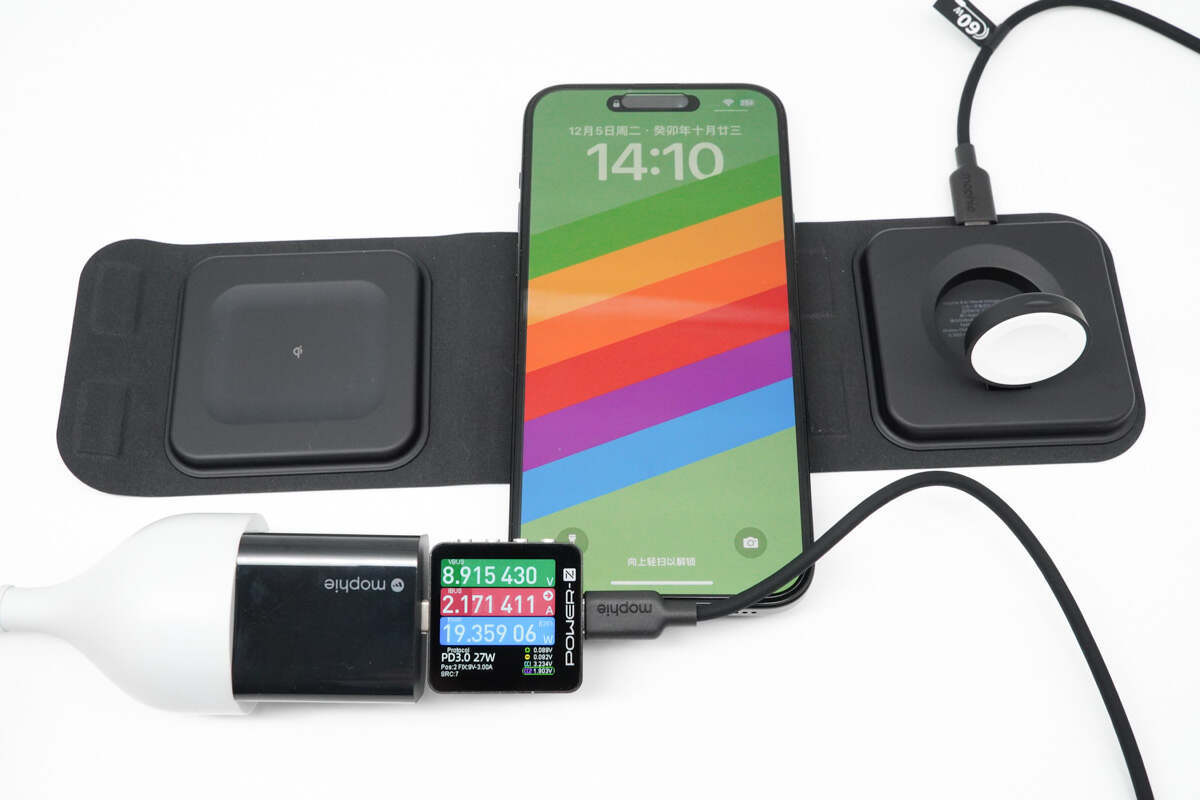

By charging the iPhone 15 Plus mobile phone, the measured output power of the charger is 8.92V 2.17A 19.36W.

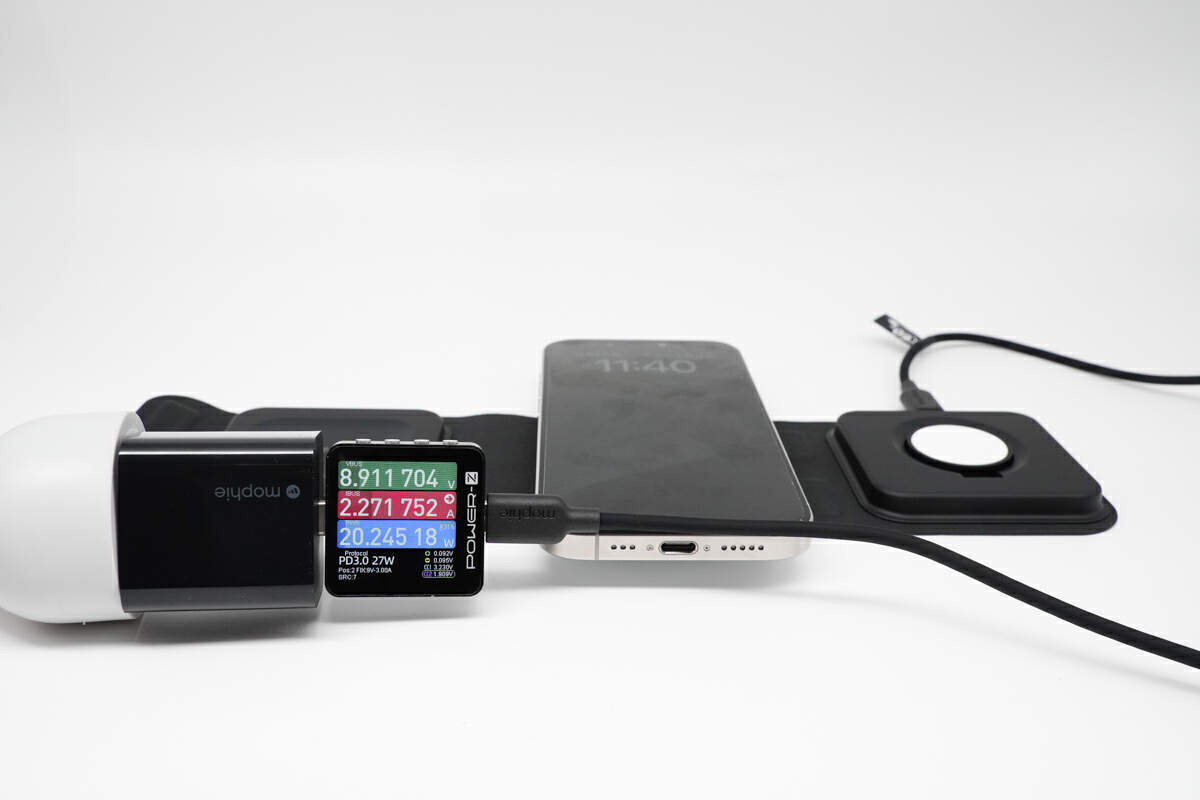

By charging the iPhone 15 Pro mobile phone, the measured output power of the charger is 8.91V 2.27A 20.25W; similarly, there is no obvious difference in the charging power of the iPhone 15 Pro Max mobile phone, and there is no abnormal compatibility.

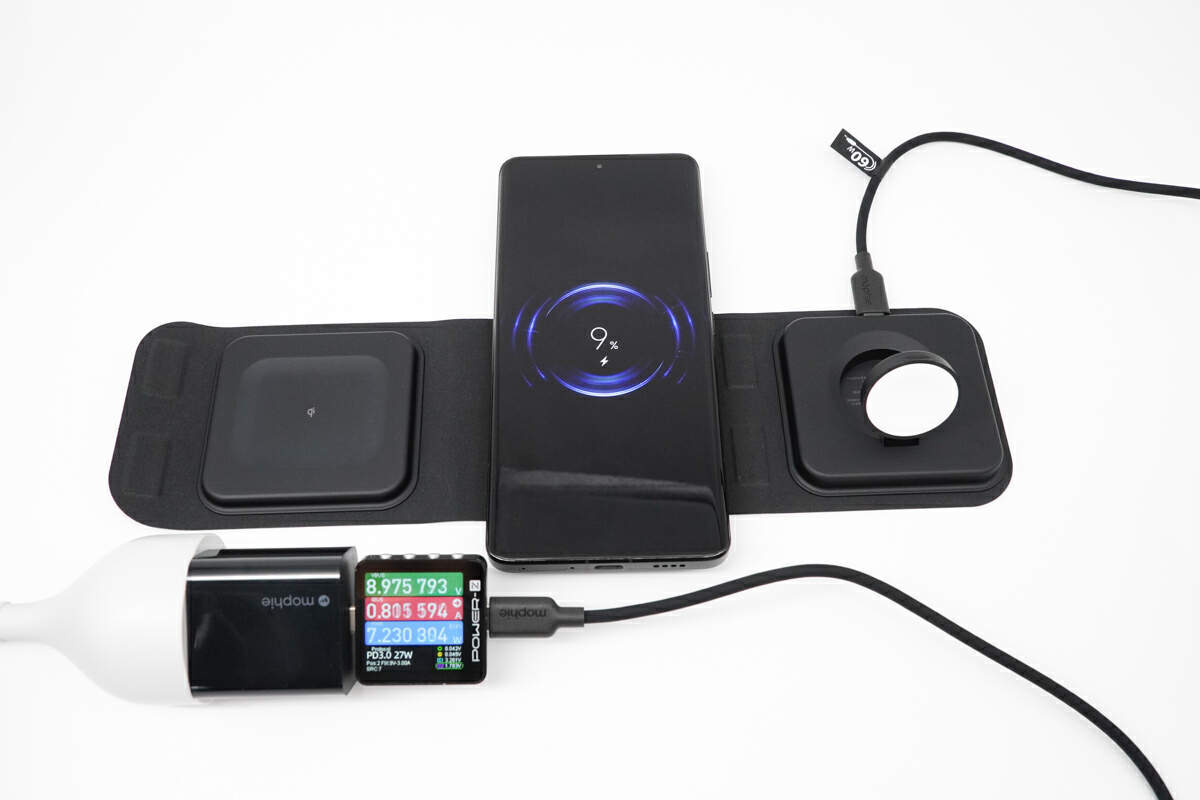

In addition, mobile phones that support wireless charging functions from Huawei, Xiaomi, vivo, OPPO and other manufacturers can also be charged. For example, for wireless charging of Xiaomi 12 Pro mobile phones, the output power of the charger is 8.98V 0.81A 7.23W, but the user Confirm the wireless charging area by yourself and adjust the position.

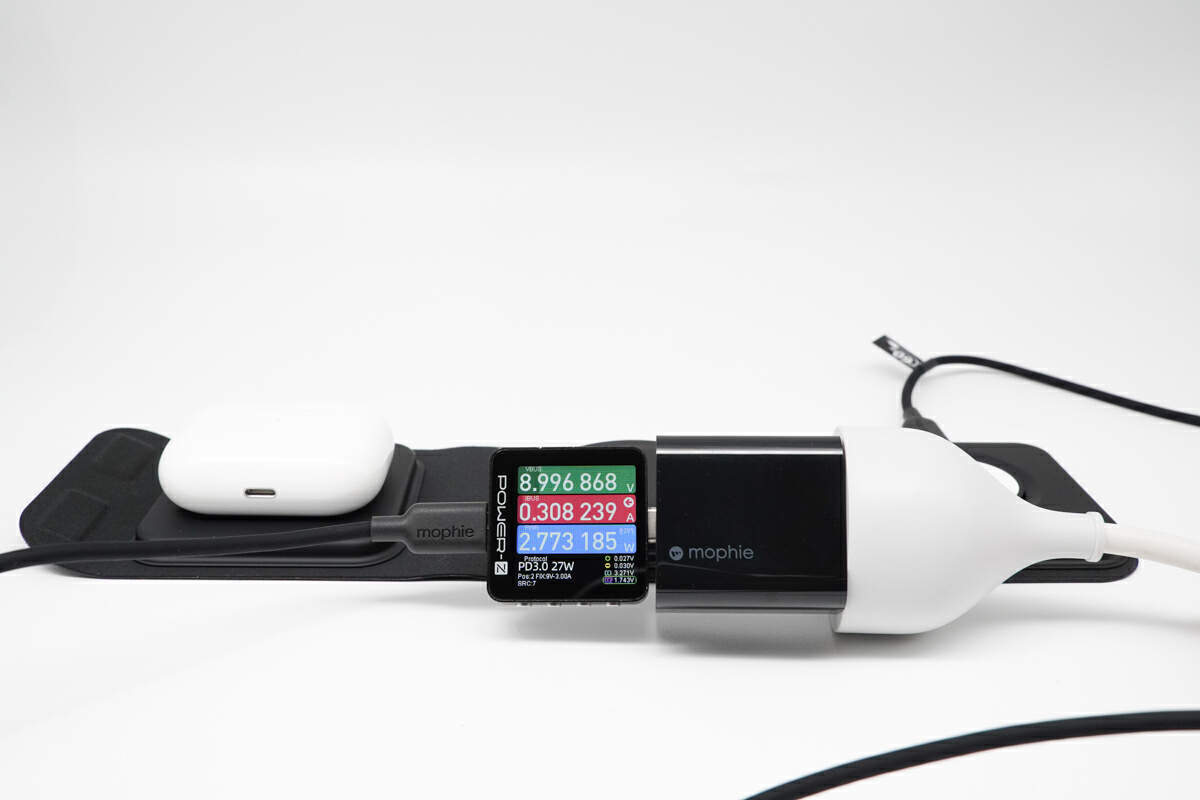

The AirPods Pro headphones are charged through the headphone wireless charging area of the mophie three-in-one wireless charger. The measured output power of the charger is 9V 0.31A 2.77W. Excluding losses, it approximately conforms to the description of wireless charging power in this area.

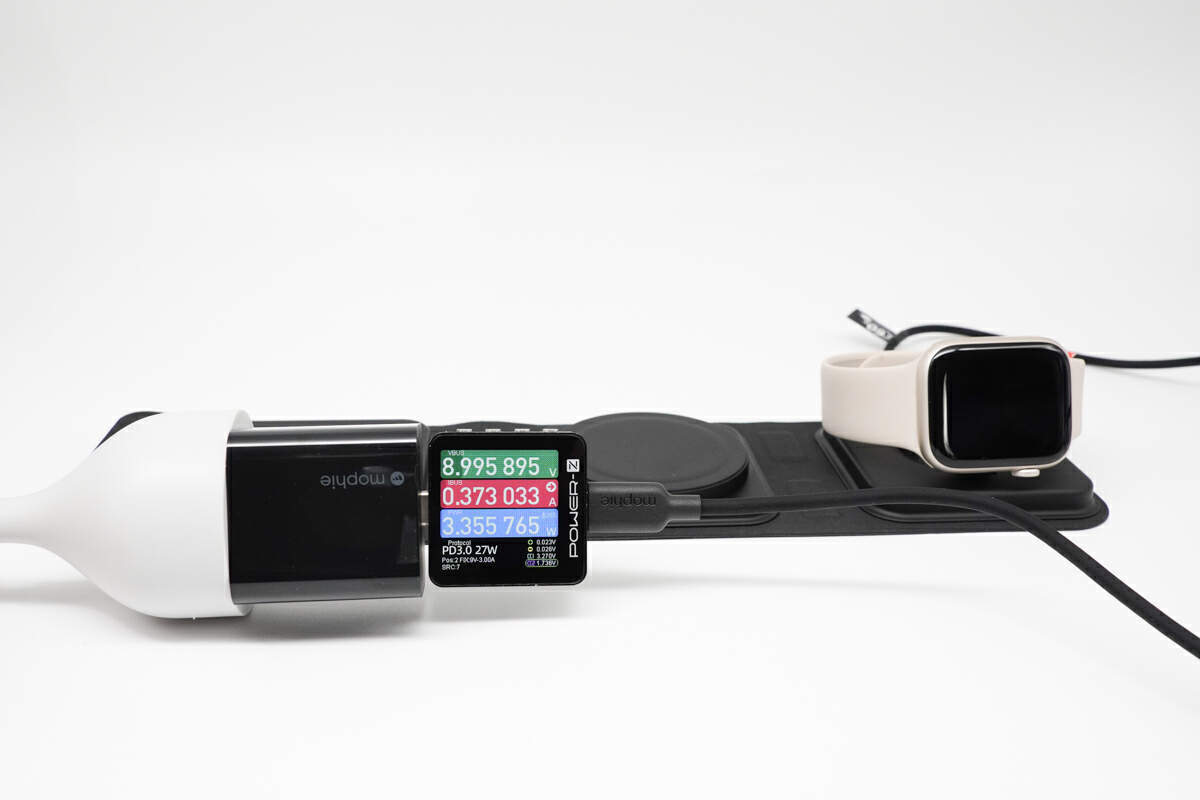

The Apple Watch S8 is charged through the watch magnetic charging area of the mophie three-in-one wireless charger. The measured output power of the charger is 9V 0.37A 3.36W. Excluding losses, it approximately conforms to the wireless charging power description in this area.

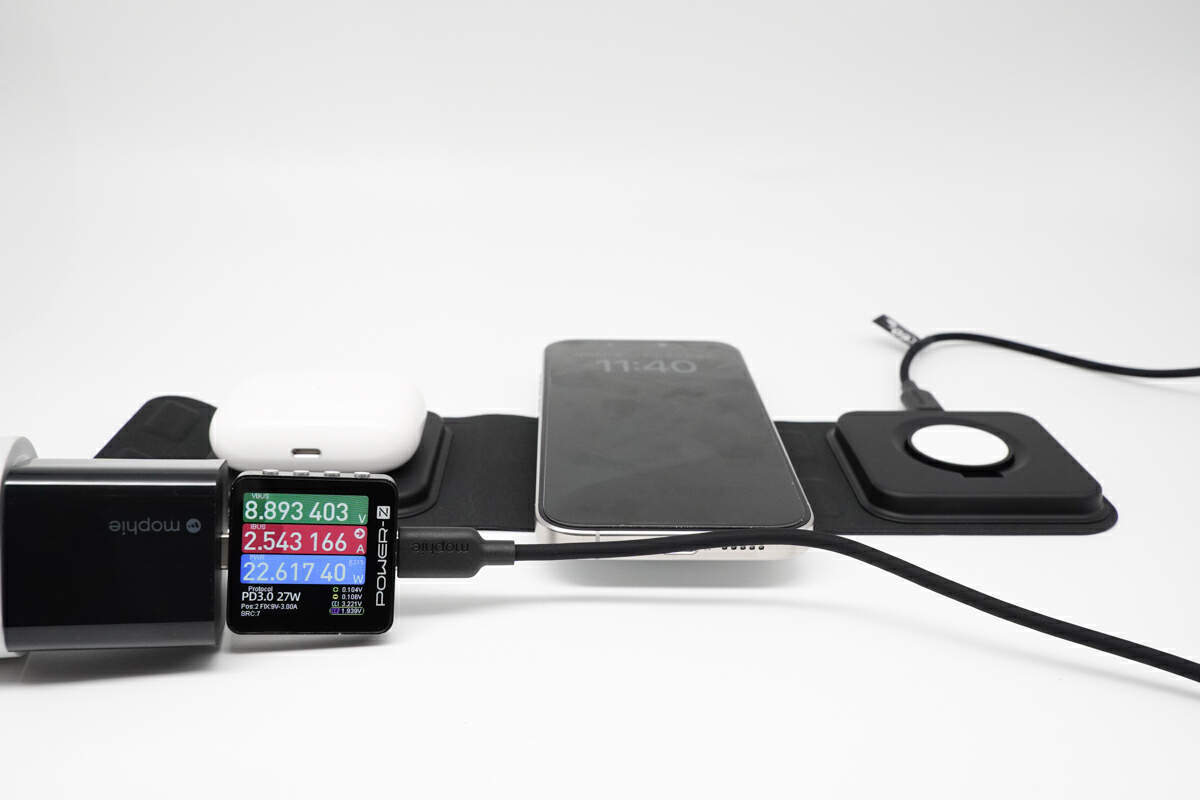

AirPods Pro and iPhone 15 Pro were charged simultaneously through the mophie three-in-one wireless charger. The measured output power of the charger was 8.89V 2.54A 22.62W.
At the same time, the headphone charging area can not only charge headphones that support qi wireless charging function, but also charge mobile phones that support wireless charging function. Since there is no magnetic suction function, users need to confirm the charging position by themselves; the actual test was to charge two iPhone mobile phones. At this time, the output power of the charging terminal is 8.91V 2.11A 18.82W, which proves that it cannot exceed the nominal power.

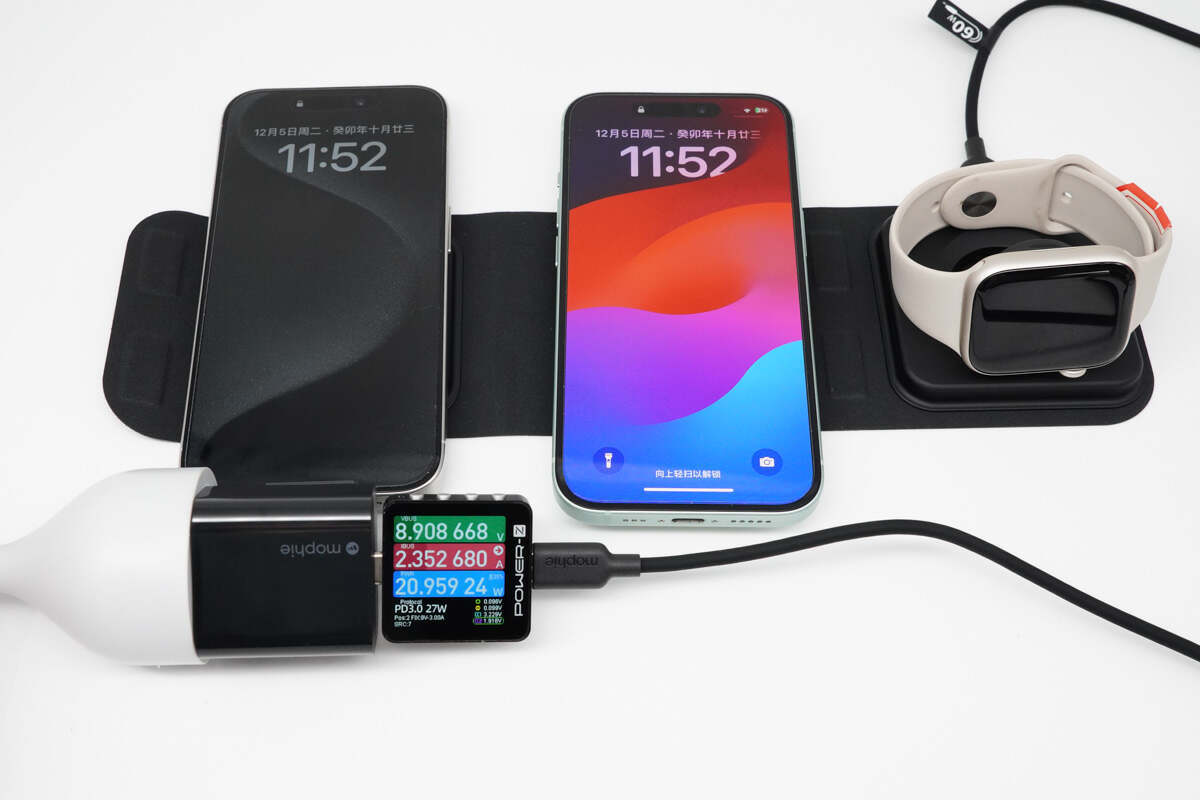

Finally, two iPhones and Apple Watches were charged simultaneously through a wireless charger. The measured output power of the charger was 8.91V 2.35A 20.96W.

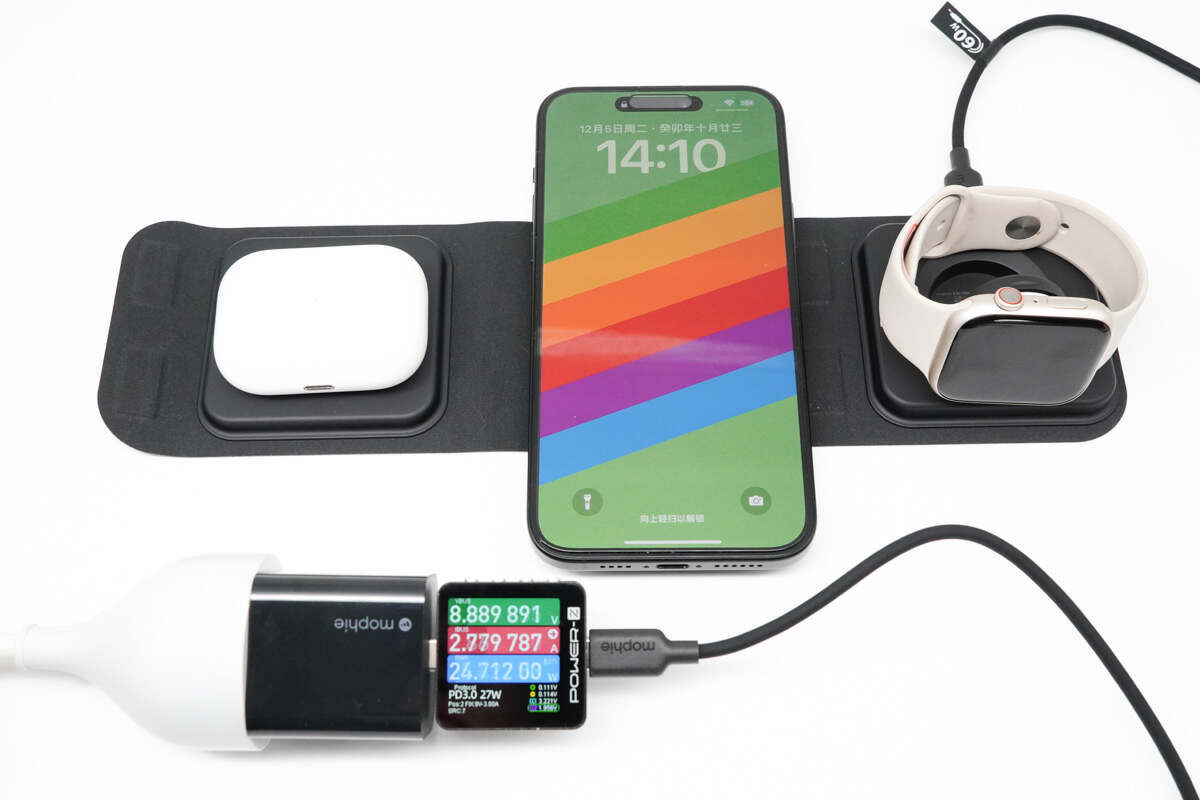

When AirPods Pro, iPhone 15 Plus, and Apple Watch S8 are charged simultaneously through a wireless charger, the measured output power of the charger is 8.89V 2.78A 24.71W.

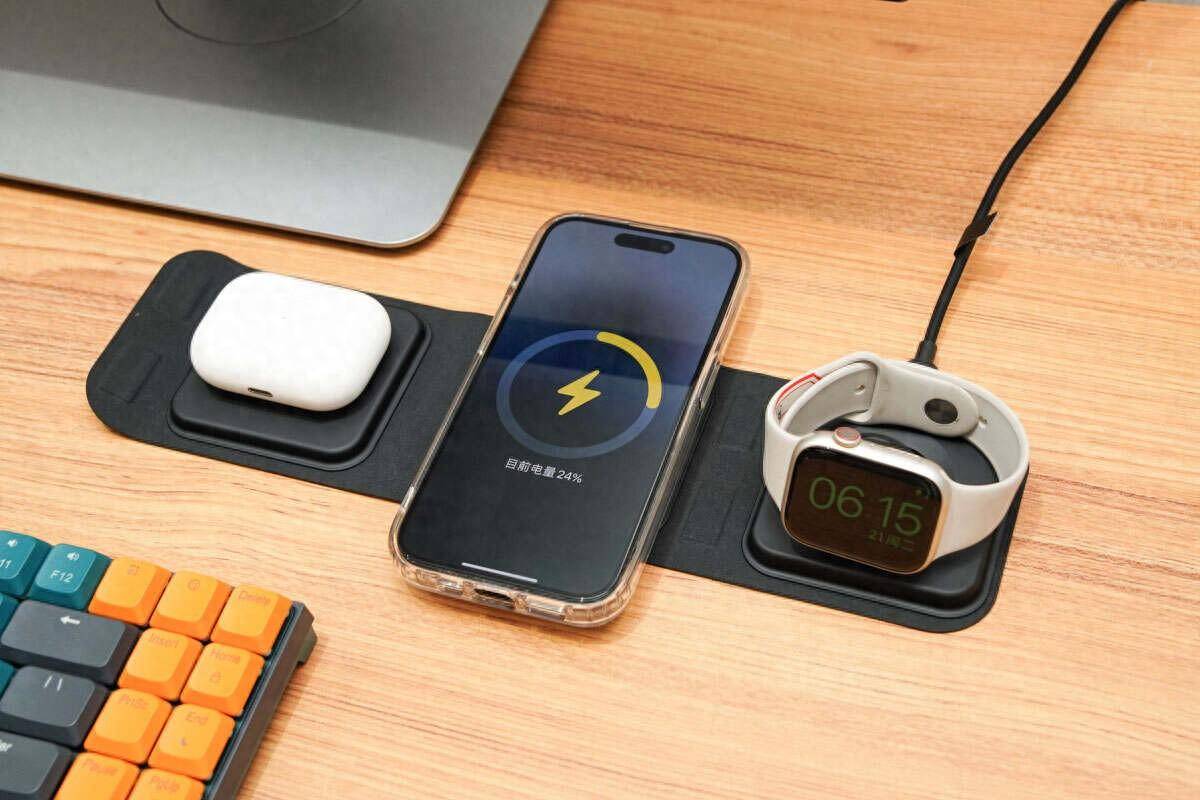

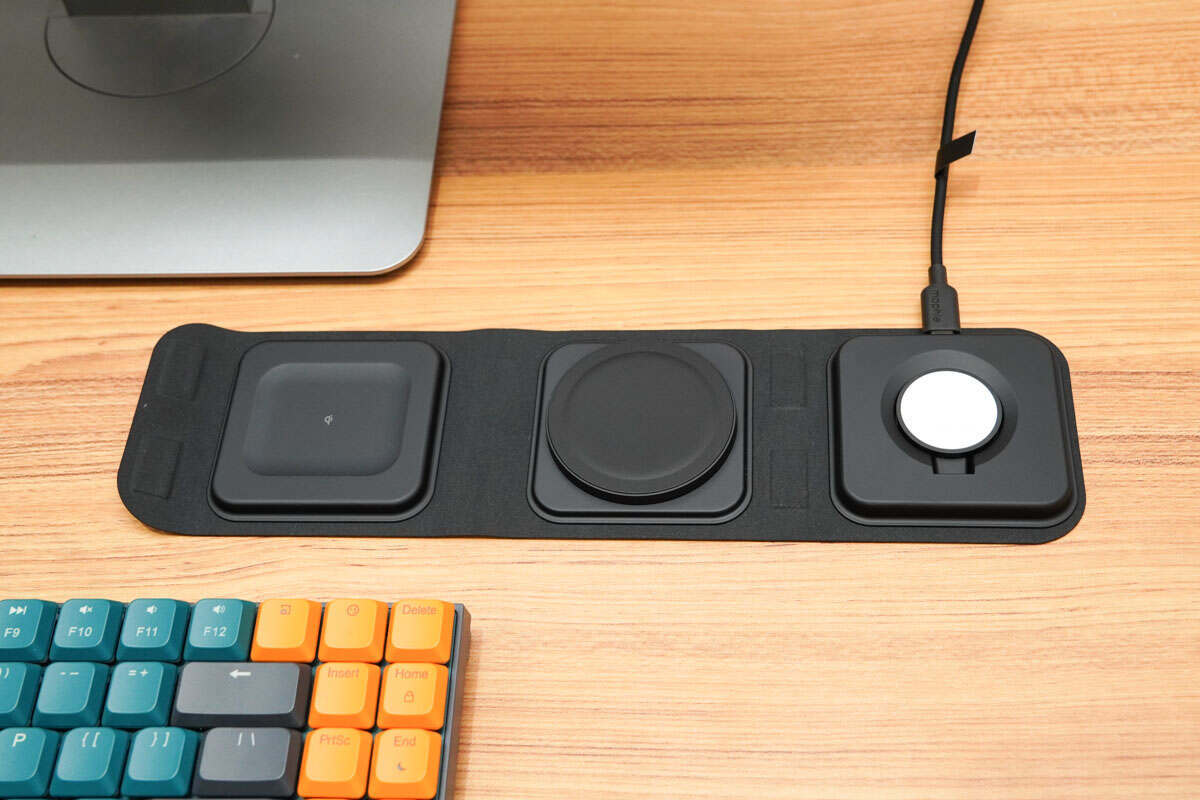

The mophie three-in-one wireless charger can be placed anywhere on the desktop without blocking the monitor base, keyboard, mouse and other devices. At the same time, after the charger is powered on, there is no need to worry about overcurrent or overload even if it is in the folded state. There will be no "mutual charging" in the charging areas.
In addition, depending on the user's wireless device, even "third-party" AirPods/Airpods Pro headphones can be charged, but the user needs to judge whether the device's heating conditions are suitable; in addition, iPhone and Apple Watch devices can also be seen Display the charging UI interface normally.

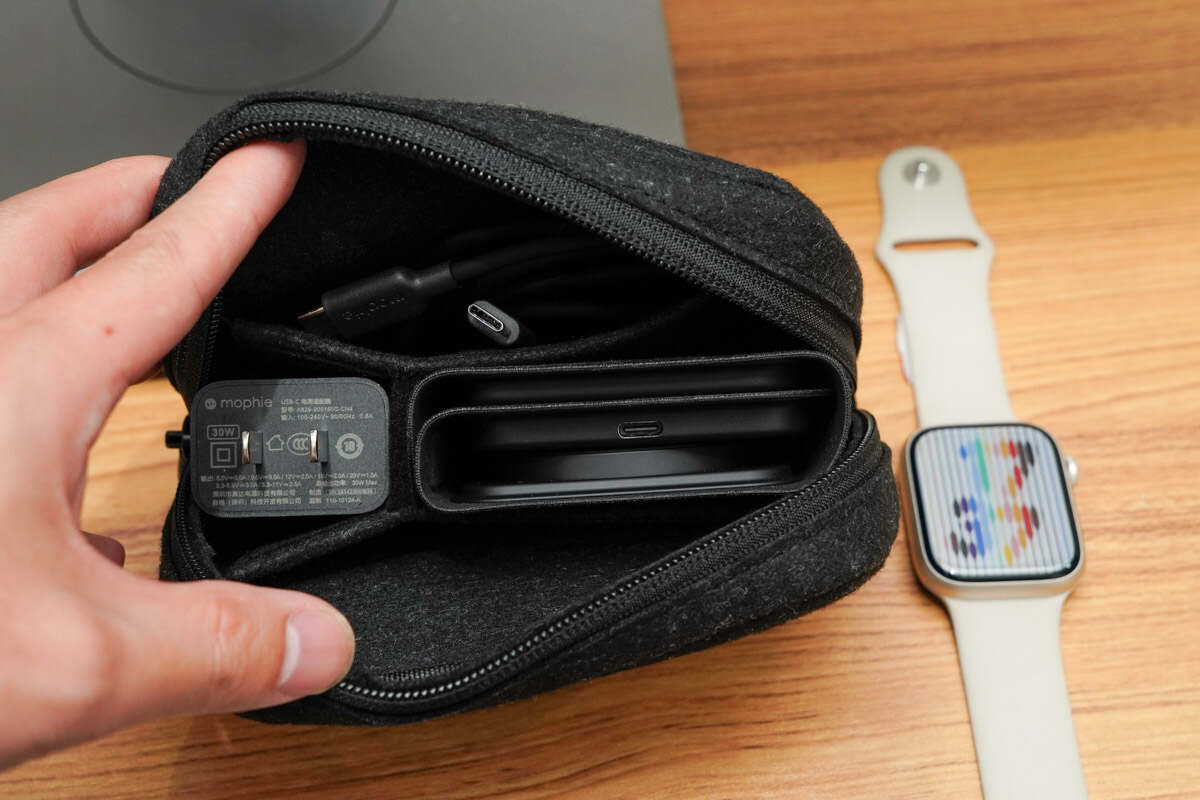

In addition, when users are traveling for business, they can use the original travel bag to store the wireless charger body, original charger set, etc., in order and without clutter.
In addition, because the mophie 3-in-1 wireless charger adopts a reel-type design, when the cover is closed, it is compact and can be stored in your pocket for convenient travel.
After the iPhone 15 and Apple Watch Ultra are exhausted, they are placed together with the mophie three-in-one wireless charger in a 25°C incubator, connected to the power supply, and the POWER-Z KM003C is used to record the data. The test data is as follows.

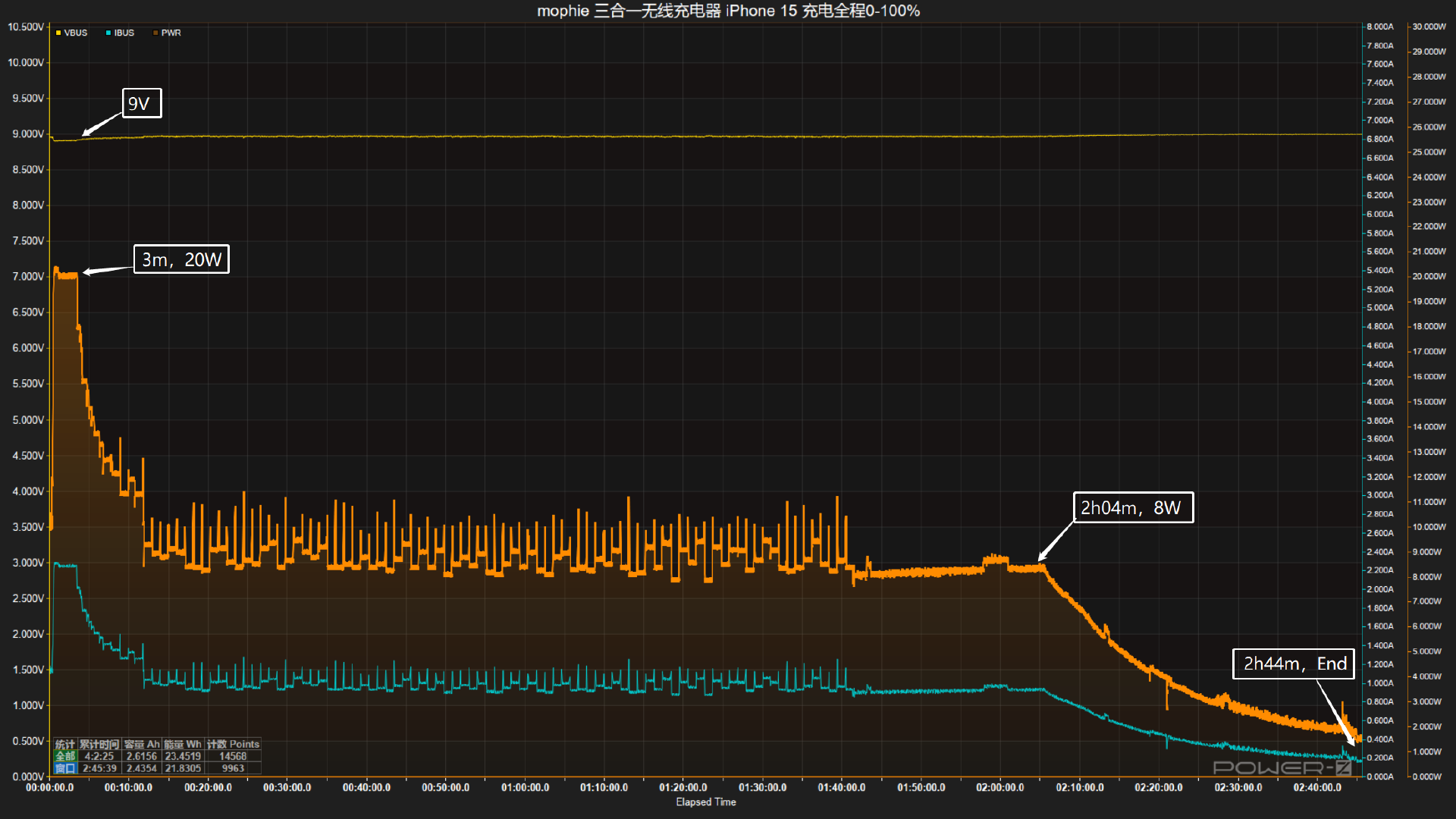

After the iPhone 15 is powered on, the voltage is 9V. The power is maintained at 20W for the first 3 minutes. Then the power drops to about 8W and the charge continues for 2 hours and 4 minutes. Finally, the power continues to drop and charging ends at 2 hours and 44 minutes.
Drawing a line chart of the test results, it can be seen that it takes about 1 hour and 06 minutes to charge the iPhone 15 to 50% using the mophie three-in-one wireless charger, about 1 hour and 52 minutes to charge to 80%, and about 1 hour and 52 minutes to charge to 100%. It took about 2 hours and 44 minutes.

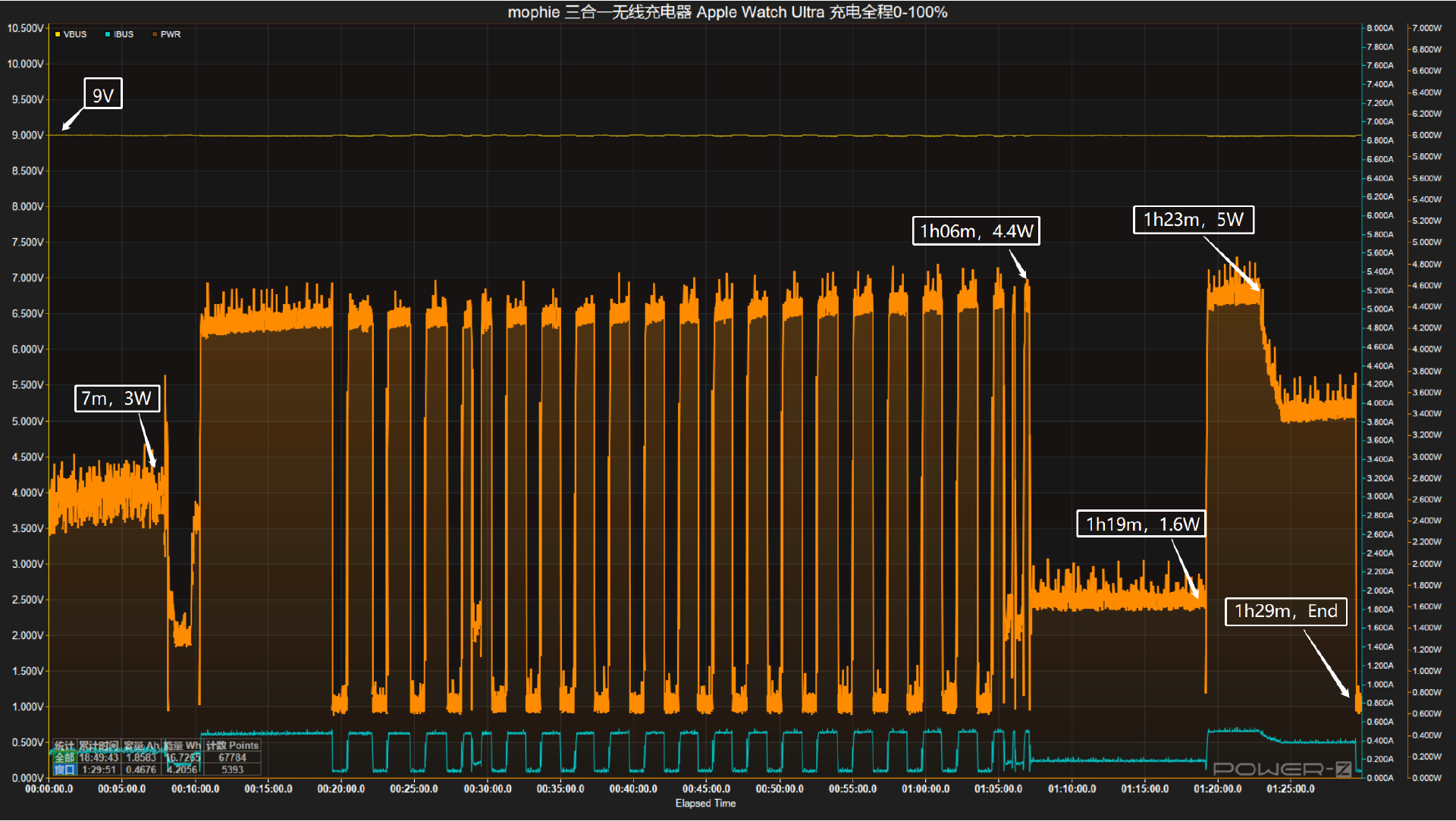

After the Apple Watch Ultra is powered on, the voltage is 9V. The power is stable at around 3W for the first 7 minutes, then the power rises to 4.4W and lasts for 1 hour and 06 minutes; then the power drops to 1.6W and lasts for 1 hour and 19 minutes; then the power Increase to 5W and charge to 1 hour and 23 minutes, and finally end charging at 1 hour and 29 minutes.

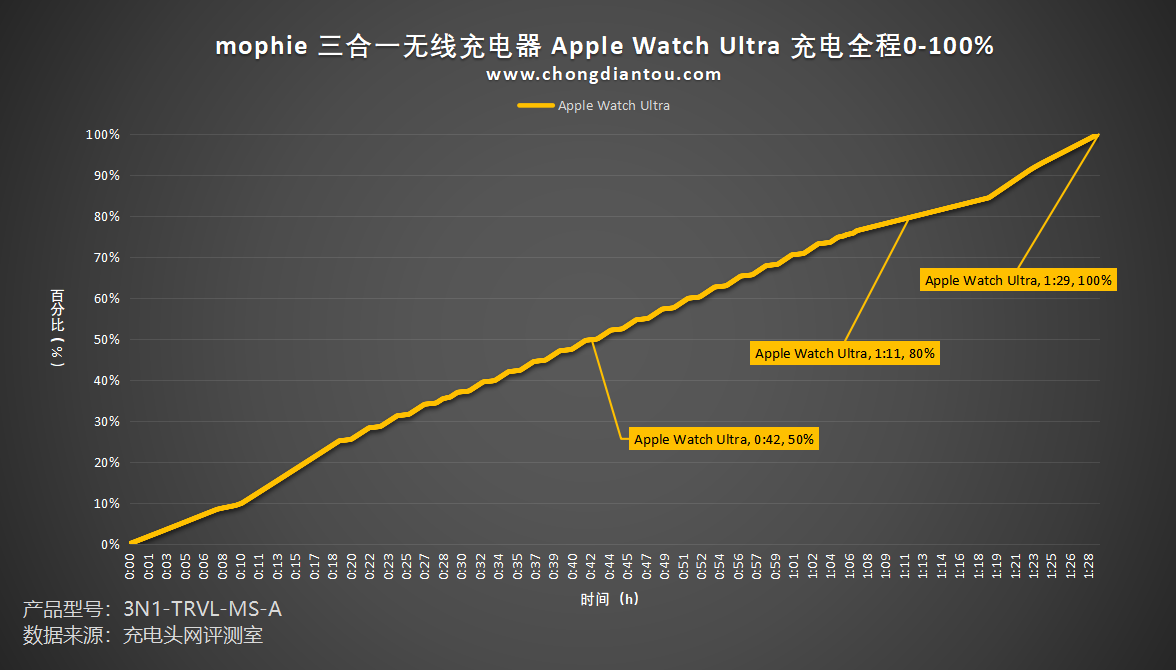

Drawing a line chart of the test results, it can be seen that it takes about 42 minutes to charge the Apple Watch Ultra to 50% using the mophie three-in-one wireless charger, about 1 hour and 11 minutes to charge to 80%, and about 1 hour and 11 minutes to charge to 100%. About 1 hour and 29 minutes.
Put the mophie three-in-one wireless charger and iPhone 15 into a 25°C thermostat to simulate a 220V 50Hz mains environment. After 30 minutes, the temperature data while charging the iPhone 15 is collected.

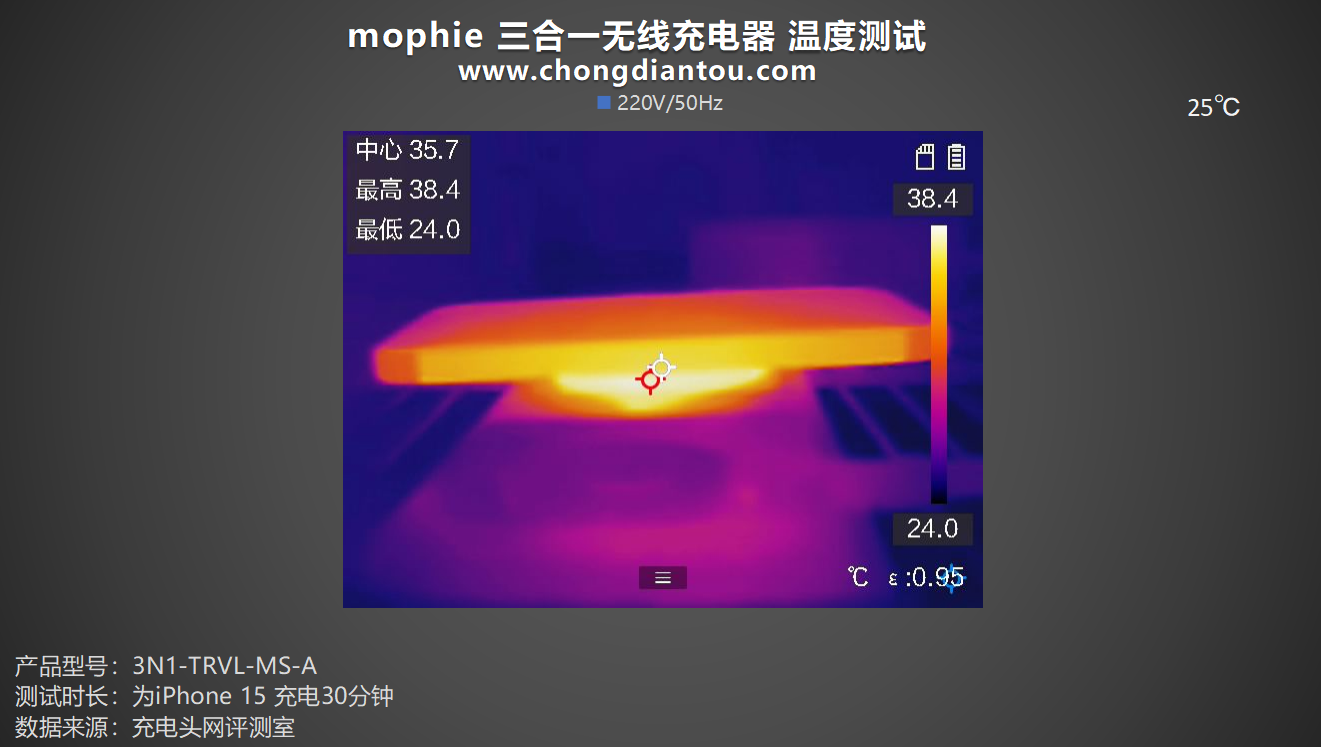

As can be seen from the picture, after charging the iPhone 15 with the mophie three-in-one wireless charger for 30 minutes, the maximum temperature of the magnetic wireless charging surface recorded using a thermal imager was 38.4°C. For daily use, this temperature will not feel hot and the touch will feel gentle.
Also put the mophie three-in-one wireless charger and Apple Watch Ultra into a 25°C incubator to simulate the 220V 50Hz mains environment, and collect the temperature data when charging the Apple Watch Ultra after 30 minutes.

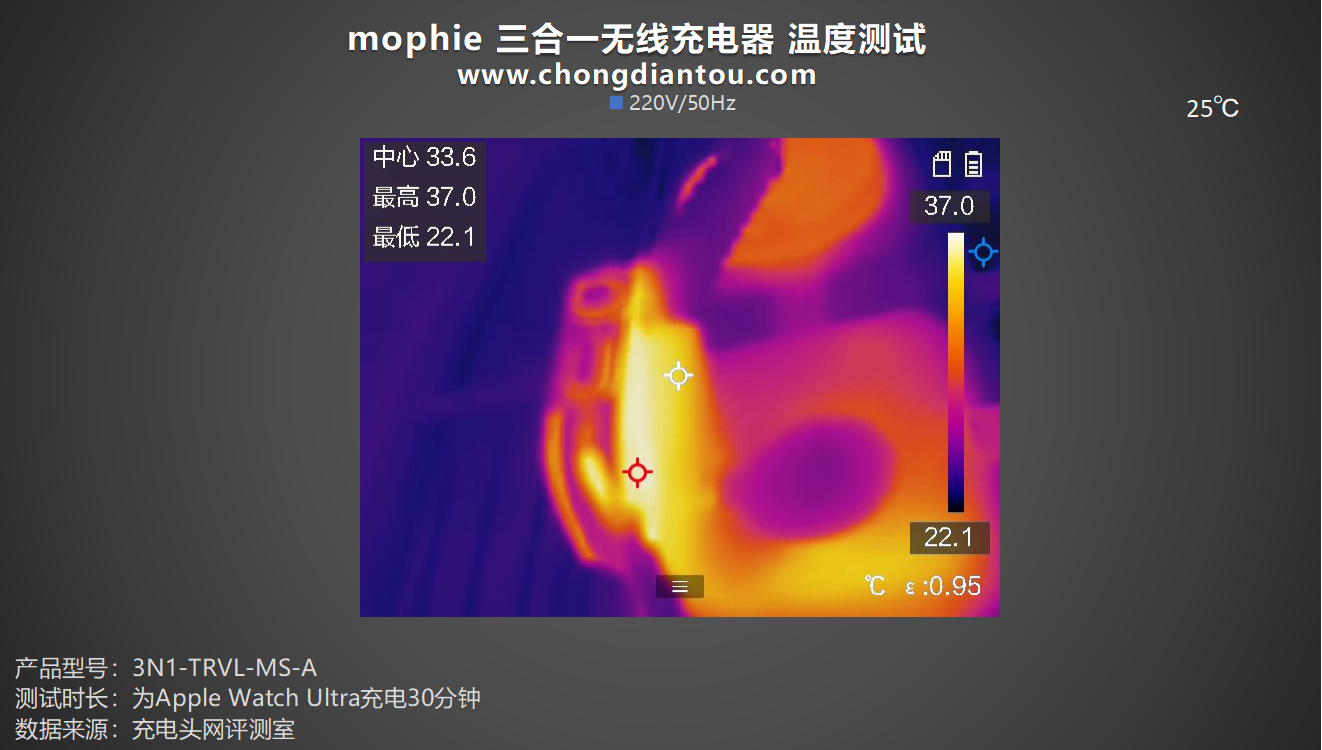

As can be seen from the picture, after charging the Apple Watch Ultra with the mophie 3-in-1 wireless charger for 30 minutes, the maximum temperature of the magnetic surface of the mophie 3-in-1 wireless charger captured using a thermal imager was 37°C.
This time, mophie's new three-in-one MagSafe wireless charger also adopts a roll-type folding design, which is compact and easier to carry. It can charge mobile phones, headphones, Apple Watch mobile phones and other devices with wireless charging functions at the same time, and unfold it when needed. Place it and charge it wherever you go.
Similarly, the accessories this time are still very rich. The hydrophobic storage bag can store the mophie 3-in-1 wireless charger and 30W charger set at the same time. Even other multi-port chargers can be easily stored.
In the performance test part, the mobile phone magnetic charging module charges the iPhone 15 phone to 100% power, which takes a total of 2 hours and 44 minutes; the watch magnetic charging module charges the Apple Watch Ultra watch to 100% power, and the charging power can reach 5W. The total time spent is 1 hour and 29 minutes; both parts are fast charging modules, and overall the experience is not much different from the original wireless charger. At the same time, wireless charging is greatly affected by temperature, and the data is only for reference.
Overall, mophie's new three-in-one MagSafe wireless charger has better adaptability and improvement in terms of high-quality fabric material, charging performance and storage capacity. At the same time, it has passed MFi, MFM, and MFW certifications. In actual experience, AirPods, There is no significant difference between the charging performance of devices such as iPhone and Apple Watch and the official MagSafe charging. It can save more space when users create a wireless desktop; in addition, the exquisite and compact body can also facilitate office travel
